Description
Ceratizit Article Number: 7050954000
Ceratizit Material Number: 152562
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit PCLNL 4040 S19-T CoreLine 95° Toolholder With Lever Clamping 7050954000 | |
| EDP # | 0710743 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 112.0 oz | 3166 g |
| Product-Carbon-Footprint | B | |

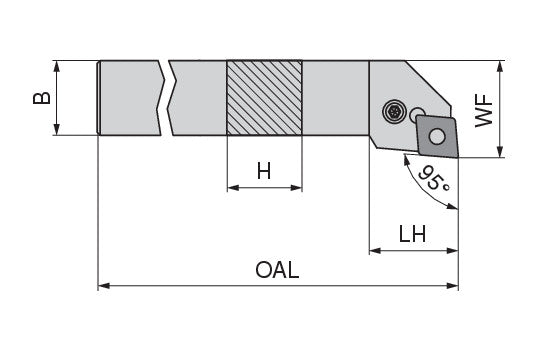

| Shank height / H | 1.5748" | 40.000 mm |
| Shank width / B | 1.5748" | 40.000 mm |
| Overall length / OAL | 9.8425" | 250.000 mm |
| Head length / LH | 1.4961" | 38.000 mm |
| Functional width / WF | 1.9685" | 50.000 mm |
| Insert | CN.. 1906 | |
| Overall height / OAH | 1.8110" | 46.000 mm |
| torque moment | 8 Nm | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
