Description
Ceratizit Article Number: 70524016
Ceratizit Material Number: 152586
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit PSKNR 1616 H09-T CoreLine 75° Tool Holder With Lever Clamping 70524016 | |
| EDP # | 0710749 | |
| Weight (1 pc.) | 8.0 oz | 214 g |

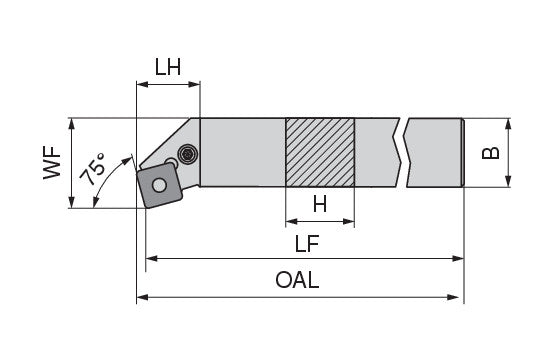

| Shank height / H | 0.6299" | 16.000 mm |
| Shank width / B | 0.6299" | 16.000 mm |
| Overall length / OAL | 4.0354" | 102.500 mm |
| Functional length / LF | 3.9370" | 100.000 mm |
| Head length / LH | 0.7362" | 18.700 mm |
| Functional width / WF | 0.7874" | 20.000 mm |
| Insert | SNM. 0903 | |
| Overall height / OAH | 0.7756" | 19.700 mm |
| torque moment | 3 Nm | |
| Version | Right | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
