Description
Ceratizit Article Number: 70883012
Ceratizit Material Number: 301013
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit E12L00-1212-TC16 Monobloc Tool For External Thread Cutting 70883012 | |
| EDP # | 0711231 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 7.0 oz | 198 g |
| Product-Carbon-Footprint | B | |

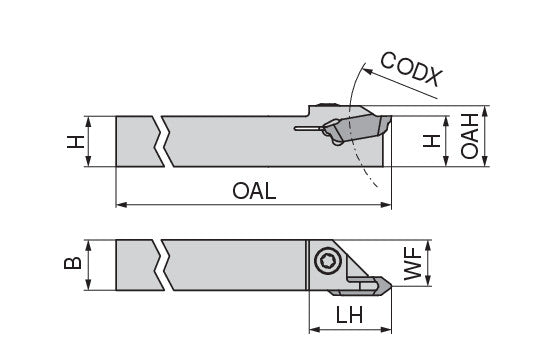

| Shank height / H | 0.4724" | 12.000 mm |
| Shank width / B | 0.4724" | 12.000 mm |
| Functional width / WF | 0.4331" | 11.000 mm |
| Overall length / OAL | 5.9055" | 150.000 mm |
| Head length / LH | 0.7874" | 20.000 mm |
| Overall height / OAH | 0.5709" | 14.500 mm |
| Threads per inch range / TPI - R / TPI | 28 - 8 | |
| Thread pitch range / TP | 0.5 - 3 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
