Description
Ceratizit Article Number: 7858101623
Ceratizit Material Number: 1347051
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

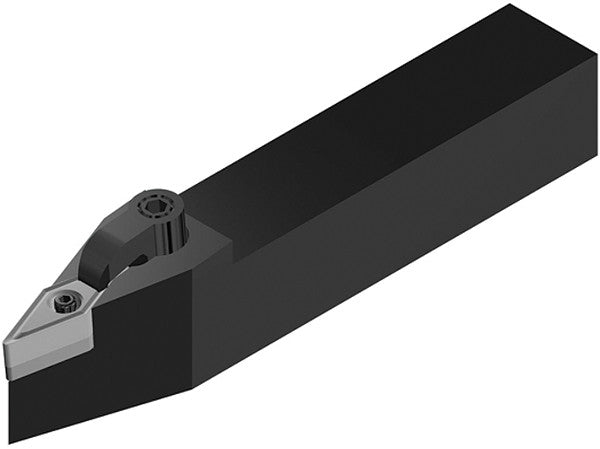

| Name | Ceratizit MVVNN 16-3B CoreLine 72.5° Toolholder With Top Clamping 7858101623 | |
| EDP # | 0711617 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

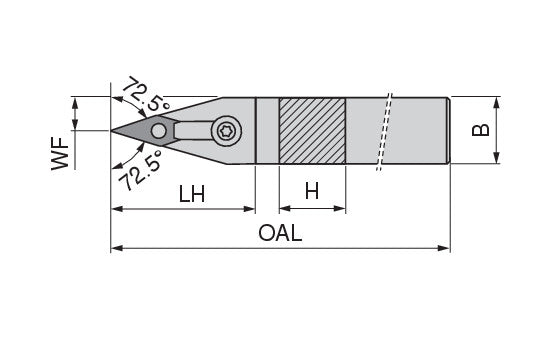

| Shank height / H | 1.0000" | 25.400 mm |
| Shank width / B | 1.0000" | 25.400 mm |
| Overall length / OAL | 4.5000" | 114.300 mm |
| Head length / LH | 1.6200" | 41.150 mm |
| Functional width / WF | 0.5000" | 12.700 mm |
| Version | Neutral | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
