Description
Ceratizit Article Number: 7856501003
Ceratizit Material Number: 1347118
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit STGCL 10-3 CoreLine 90° Toolholder With Screw Clamping 7856501003 | |
| EDP # | 0711673 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) Steel (Blue) Cast Iron (Red) Cast Iron (Red) Composites (Black) Stainless Steel (Yellow) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

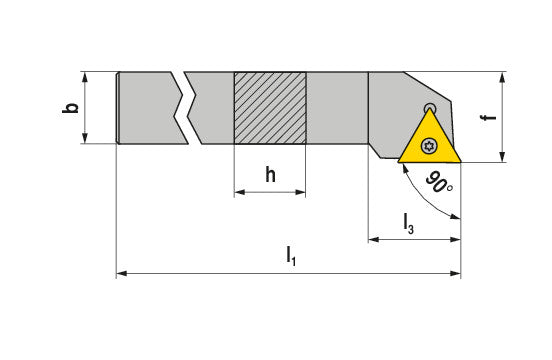

| Shank height / H | 0.6250" | 15.880 mm |
| Shank width / B | 0.6250" | 15.880 mm |
| Overall length / OAL | 4.0000" | 101.600 mm |
| Head length / LH | 1.0000" | 25.400 mm |
| Functional width / WF | 0.7500" | 19.050 mm |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
