Description
Ceratizit Article Number: 7855401002
Ceratizit Material Number: 6283530
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SDJCR 10-2 CoreLine 93° Toolholder With Screw Clamping 7855401002 | |
| EDP # | 0711836 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

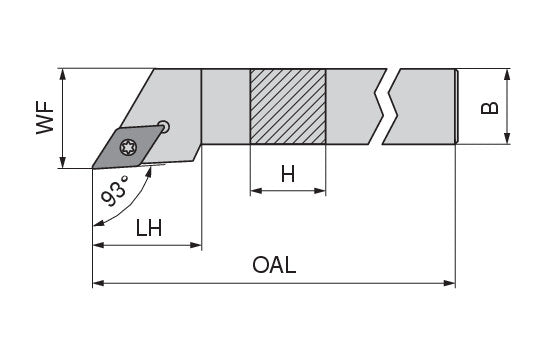

| Shank height / H | 0.6250" | 15.880 mm |
| Shank width / B | 0.6250" | 15.880 mm |
| Overall length / OAL | 4.0000" | 101.600 mm |
| Head length / LH | 0.6700" | 17.020 mm |
| Functional width / WF | 0.7500" | 19.050 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
