Description
Ceratizit Article Number: 7858200602
Ceratizit Material Number: 6283542
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

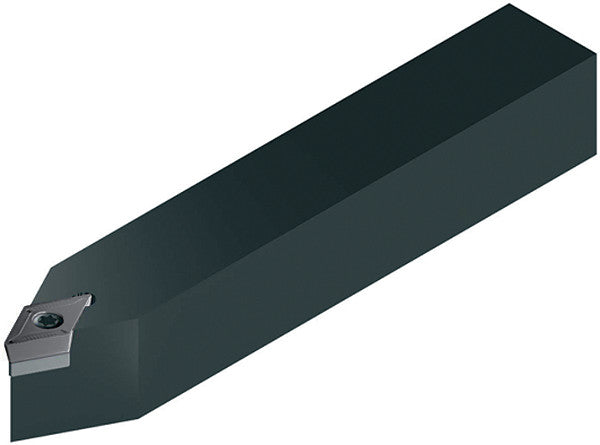

| Name | Ceratizit SDPCN 06-2 CoreLine 62.5° Toolholder With Screw Clamping 7858200602 | |
| EDP # | 0711840 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) Cast Iron (Red) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) Cast Iron (Red) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

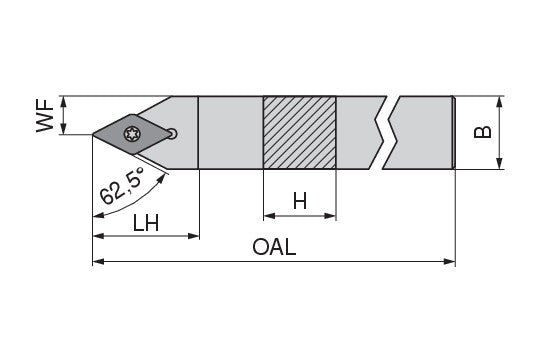

| Shank height / H | 0.3750" | 9.520 mm |
| Shank width / B | 0.3750" | 9.520 mm |
| Overall length / OAL | 2.5000" | 63.500 mm |
| Head length / LH | 0.3700" | 9.400 mm |
| Functional width / WF | 0.1970" | 5.000 mm |
| Version | Neutral | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
