Description
Ceratizit Article Number: 7885010000
Ceratizit Material Number: 11072631
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

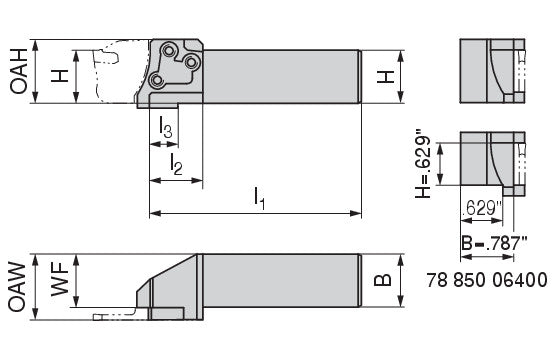

| Properties | ||
|---|---|---|

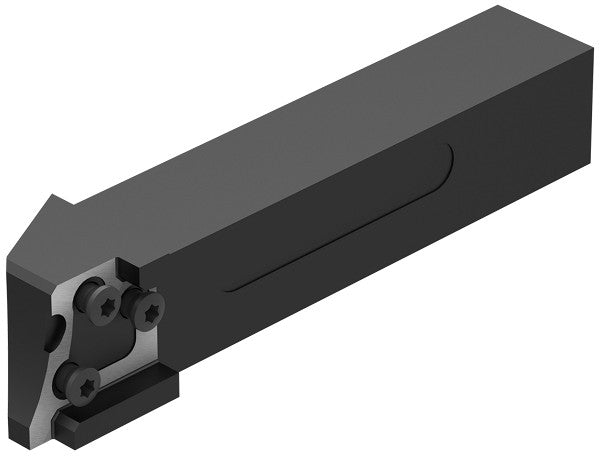

| Name | Ceratizit MSS-E25R00-16-E CoreLine Tool Holder 0° ModularClamp 7885010000 | |
| EDP # | 0711953 | |
| Weight (1 pc.) | 27.0 oz | 765 g |
| Shank height / H | 1.0000" | 25.400 mm |
| Shank width / B | 1.0000" | 25.400 mm |
| Overall width / OAW | 1.2362" | 31.400 mm |
| Overall height / OAH | 1.1969" | 30.400 mm |
| Functional width / WF | 1.0200" | 25.910 mm |
| L1 | 5.5000" | 139.700 mm |
| L2 | 0.9840" | 24.990 mm |
| Head length / LH | 1.2008" | 30.500 mm |
| Overall length / OAL | 5.7165" | 145.200 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
