Description
Ceratizit Article Number: 7883112500
Ceratizit Material Number: 11103939
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

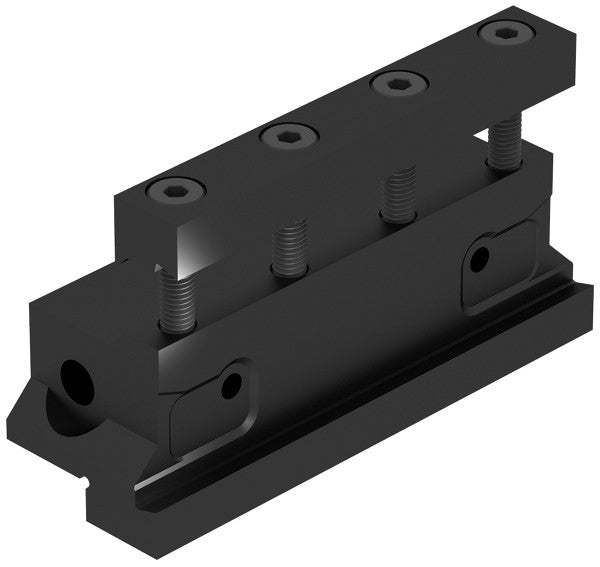

| Name | Ceratizit SBN 20-32KS-E CoreLine Split Clamping Block For Blades 7883112500 | |
| EDP # | 0712065 | |
| Weight (1 pc.) | 51.0 oz | 1450 g |

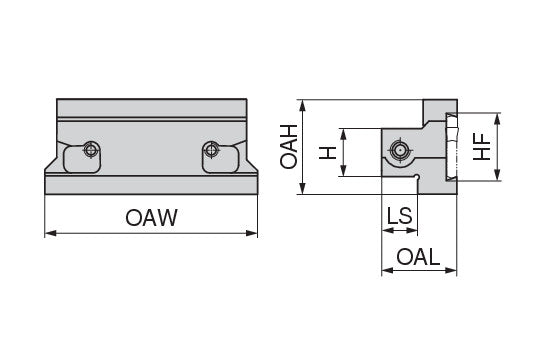

| Shank height / H | 1.2500" | 31.750 mm |
| Functional height / HF | 1.2600" | 32.000 mm |
| Overall height / OAH | 2.0440" | 51.920 mm |
| Shank length / LS | 1.2000" | 30.480 mm |
| Overall length / OAL | 1.9090" | 48.490 mm |
| Overall width / OAW | 4.7200" | 119.890 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
