Description
Ceratizit Article Number: 7885210000
Ceratizit Material Number: 11104281
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

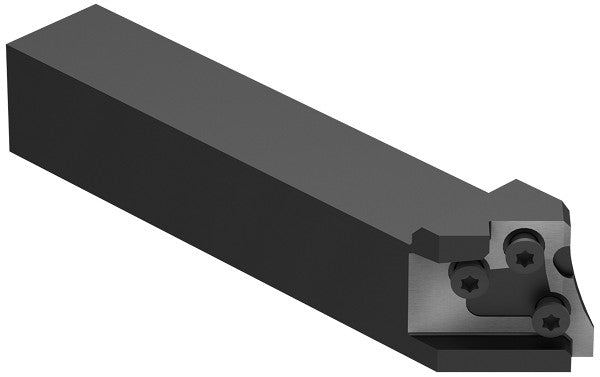

| Name | Ceratizit MSS-E25R45-16-E CoreLine Tool Holder 45° ModularClamp 7885210000 | |
| EDP # | 0712100 | |
| Weight (1 pc.) | 23.0 oz | 656 g |
| Shank height / H | 1.0000" | 25.400 mm |
| Shank width / B | 1.0000" | 25.400 mm |
| Overall width / OAW | 1.0240" | 26.010 mm |
| Overall height / OAH | 1.1970" | 30.400 mm |
| Functional width / WF | 0.7090" | 18.010 mm |
| L1 | 5.5000" | 139.700 mm |
| L2 | 0.9840" | 24.990 mm |
| Head length / LH | 0.9843" | 25.000 mm |
| Overall length / OAL | 5.5000" | 139.700 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
