Description
Ceratizit Article Number: 7459511200
Ceratizit Material Number: 11232159
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

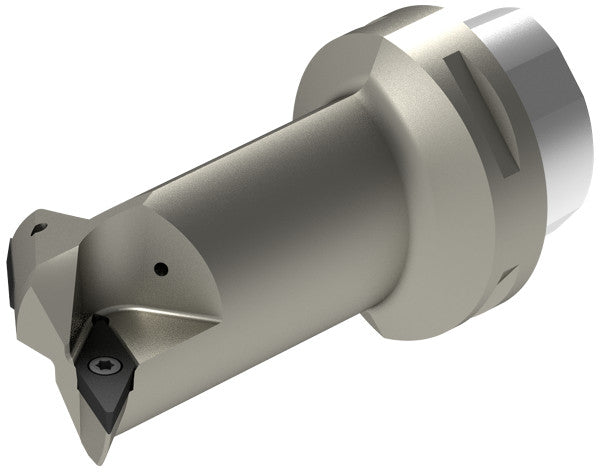

| Name | Ceratizit OC50-D50R112.5H MaxiTurn Hub Tool 112.5° For Axial Clamping OvalFlex 7459511200 | |
| EDP # | 0712620 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 31.0 oz | 885 g |
| Product-Carbon-Footprint | B | |

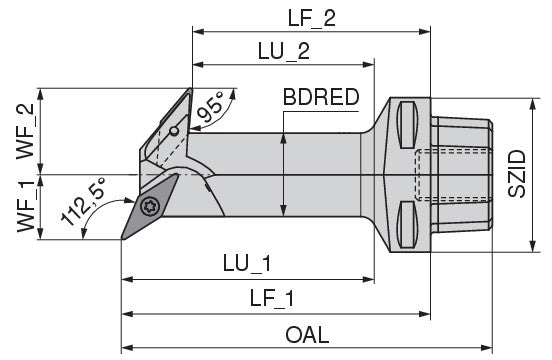

| Minimum bore diameter / DMIN | 1.9685" | 50.000 mm |
| Protruding length / LPR | 3.9370" | 100.000 mm |
| Body diameter, reduced / BDRED | 1.0630" | 27.000 mm |
| Insert | VC.. 160408 | |
| Usable length 2 / LU_2 | 2.3228" | 59.000 mm |
| Usable length 1 / LU_1 | 3.2283" | 82.000 mm |
| Designation | OC50 D50 R 112.5H | |
| nominal size / SZID | 50.0000" | 1270.000 mm |
| Functional length 2 / LF_2 | 3.0315" | 77.000 mm |
| Functional length 1 / LF_1 | 3.9370" | 100.000 mm |
| Machine interface size | OC50 | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
