Description
Ceratizit Article Number: 7459406500
Ceratizit Material Number: 11244360
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

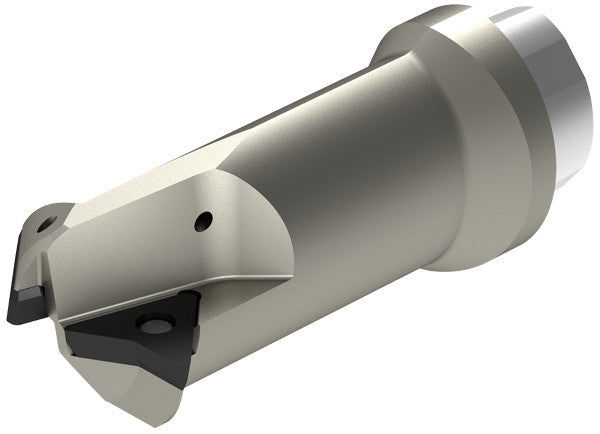

| Name | Ceratizit OC50-HUB65R15K MaxiTurn Tool For Axial Clamping HubStar 7459406500 | |
| EDP # | 0712646 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 54.0 oz | 1538 g |
| Product-Carbon-Footprint | B | |

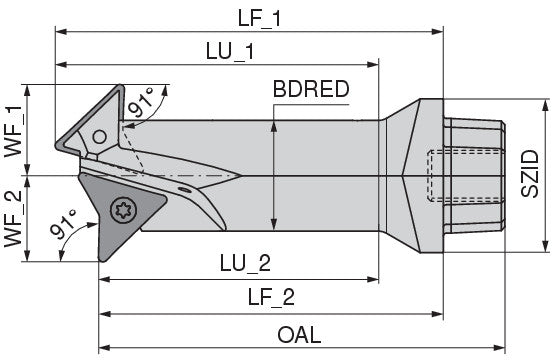

| Minimum bore diameter / DMIN | 2.5591" | 65.000 mm |
| Protruding length / LPR | 4.9213" | 125.000 mm |
| Body diameter, reduced / BDRED | 1.6142" | 41.000 mm |
| Insert | HUB 1507.. | |
| Usable length 2 / LU_2 | 3.7402" | 95.000 mm |
| Usable length 1 / LU_1 | 3.4134" | 86.700 mm |
| Designation | OC50 HUB65 R 15K | |
| nominal size / SZID | 50.0000" | 1270.000 mm |
| Functional length 2 / LF_2 | 4.4094" | 112.000 mm |
| Functional length 1 / LF_1 | 4.9213" | 125.000 mm |
| Machine interface size | OC50 | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
