Description
Ceratizit Article Number: 7459321025
Ceratizit Material Number: 11699547
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

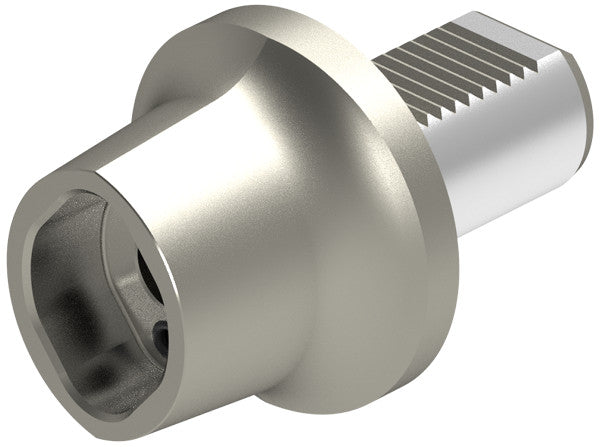

| Name | Ceratizit OC50.ISO10889.GH.50IN210 HyPower - VDI To Adapter - OvalFlex 7459321025 | |
| EDP # | 0713955 | |
| Weight (1 pc.) | 262.0 oz | 7440 g |
| Product-Carbon-Footprint | B | |
| Machine interface size | VDI 50 | |
| Cone clamping size | OC50 | |

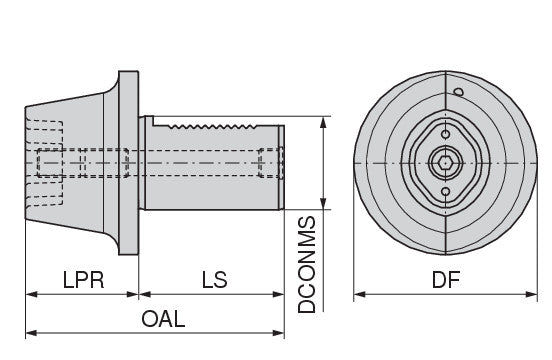

| Functional length / LF | 8.2677" | 210.000 mm |
| Mounting spigot diameter / DCONMS | 1.9685" | 50.000 mm |
| Overall length / OAL | 11.3386" | 288.000 mm |
| Flange diameter / DF | 3.8583" | 98.000 mm |
Background Information:
The ISO 10889 / DIN 69880 tool holder interface utliizes a cylindrical shank and a transverse, straight rack spline for mounting.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
