Description
Ceratizit Article Number: 7859320399
Ceratizit Material Number: 11738086
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

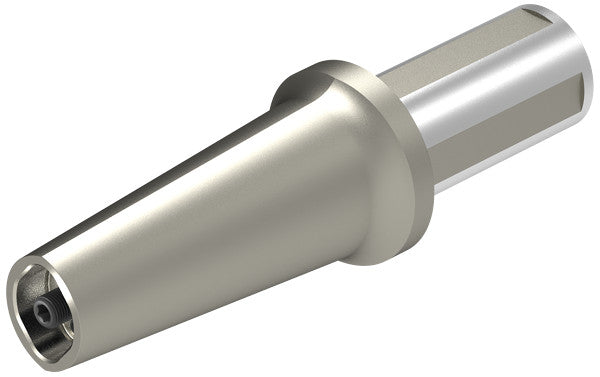

| Name | Ceratizit OC50.2.5-8-E HyPower Base Holder With Cylindrical Shank OvalFlex 7859320399 | |
| EDP # | 0714147 | |
| Weight (1 pc.) | 306.0 oz | 8670 g |
| Product-Carbon-Footprint | B | |
| Machine interface size | 2,500 " | |
| Cone clamping size | OC50 | |

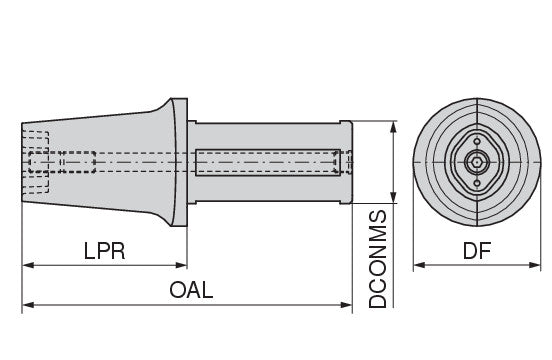

| Functional length / LF | 8.0000" | 203.200 mm |
| Mounting spigot diameter / DCONMS | 2.5000" | 63.500 mm |
| Overall length / OAL | 13.0000" | 330.200 mm |
| Flange diameter / DF | 3.8583" | 98.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
