Description
Ceratizit Article Number: 7880510800
Ceratizit Material Number: 11893885
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ECC 08L-2.25D 04-E EcoCut Drilling And Turning Tool Classic 2,25xD 7880510800 | |
| EDP # | 0745151 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 0.4 oz | 10.0 g |

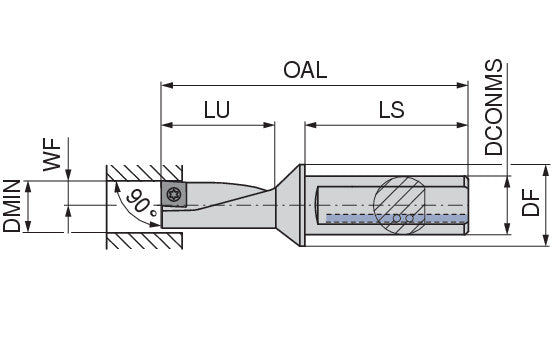

| Minimum bore diameter / DMIN | 0.3150" | 8.000 mm |
| Mounting spigot diameter / DCONMS | 0.3750" | 9.520 mm |
| Flange diameter / DF | 0.4724" | 12.000 mm |
| Overall length / OAL | 2.3000" | 58.420 mm |
| Usable length / LU | 0.7100" | 18.030 mm |
| Shank length / LS | 1.4300" | 36.320 mm |
| Functional width / WF | 0.1575" | 4.000 mm |
| Insert | XC.T 0401..EL | |
| torque moment | 0.4 Nm | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
