Description
Ceratizit Article Number: 7880511000
Ceratizit Material Number: 11893899
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ECC 10L-2.25D 05-E EcoCut Drilling And Turning Tool Classic 2,25xD 7880511000 | |
| EDP # | 0745156 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Stainless Steel (Yellow) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 2.0 oz | 63.0 g |

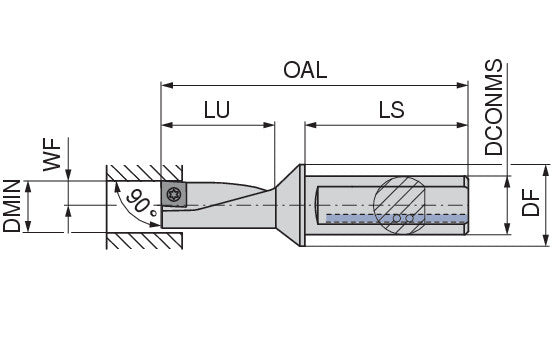

| Minimum bore diameter / DMIN | 0.3937" | 10.000 mm |
| Mounting spigot diameter / DCONMS | 0.5000" | 12.700 mm |
| Flange diameter / DF | 0.6299" | 16.000 mm |
| Overall length / OAL | 2.7000" | 68.580 mm |
| Usable length / LU | 0.8900" | 22.610 mm |
| Shank length / LS | 1.6150" | 41.020 mm |
| Functional width / WF | 0.1969" | 5.000 mm |
| Insert | XC.T 0502.. | |
| torque moment | 0.7 Nm | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
