Description
Ceratizit Article Number: 7880401400
Ceratizit Material Number: 11893950
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ECC 14R-1.5D 07-E EcoCut Drilling And Turning Tool Classic 1,5xD 7880401400 | |
| EDP # | 0745166 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Stainless Steel (Yellow) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 154 g |

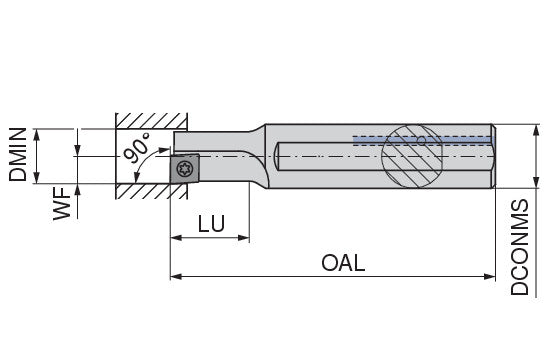

| Minimum bore diameter / DMIN | 0.5512" | 14.000 mm |
| Mounting spigot diameter / DCONMS | 0.6250" | 15.880 mm |
| Overall length / OAL | 4.3000" | 109.220 mm |
| Usable length / LU | 0.8300" | 21.080 mm |
| Functional width / WF | 0.2756" | 7.000 mm |
| Insert | XC.T 0703.. | |
| torque moment | 1.2 Nm | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
