Description
Ceratizit Article Number: 7880563200
Ceratizit Material Number: 11894037
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

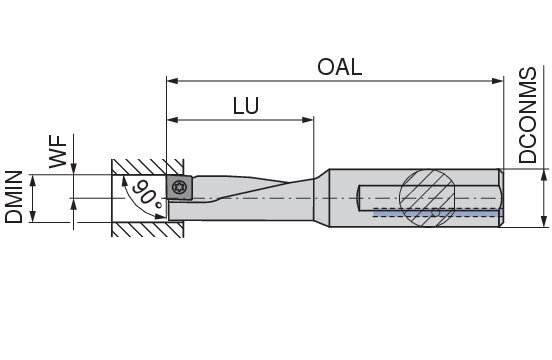

| Properties | ||
|---|---|---|
| Name | Ceratizit ECC 32L-3.0D 17 H-E EcoCut Drilling And Turning Tool Heavy Metal Classic 3,0xD 7880563200 | |
| EDP # | 0745189 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Cast Iron (Red) Stainless Steel (Yellow) Aluminum (Green) Composites (Black) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 89.0 oz | 2519 g |
| Minimum bore diameter / DMIN | 1.2598" | 32.000 mm |
| Mounting spigot diameter / DCONMS | 1.5000" | 38.100 mm |
| Overall length / OAL | 7.2000" | 182.880 mm |
| Usable length / LU | 3.7800" | 96.010 mm |
| Functional width / WF | 0.6299" | 16.000 mm |
| Insert | XC.T 1705.. | |
| torque moment | 5 Nm | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
