Description
Ceratizit Article Number: 7852802089
Ceratizit Material Number: 11829997
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

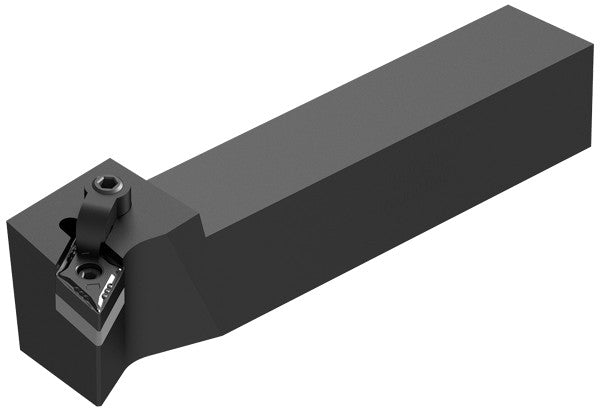

| Name | Ceratizit MDQNR 20-4D CoreLine 107.5° Toolholder With Top Clamping 7852802089 | |
| EDP # | 0752071 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Stainless Steel (Yellow) HiTemp Alloy (Orange) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

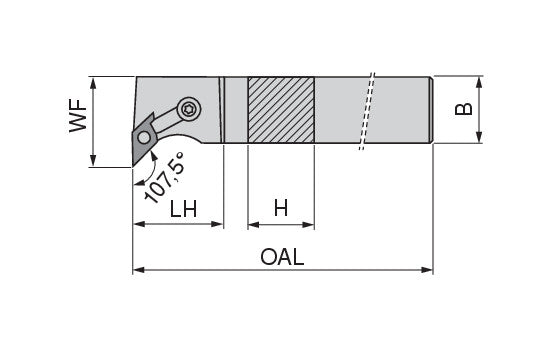

| Shank height / H | 1.2500" | 31.750 mm |
| Shank width / B | 1.2500" | 31.750 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Head length / LH | 1.3700" | 34.800 mm |
| Functional width / WF | 1.5000" | 38.100 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
