Description
Ceratizit Article Number: 80893128
Ceratizit Material Number: 8089312800
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

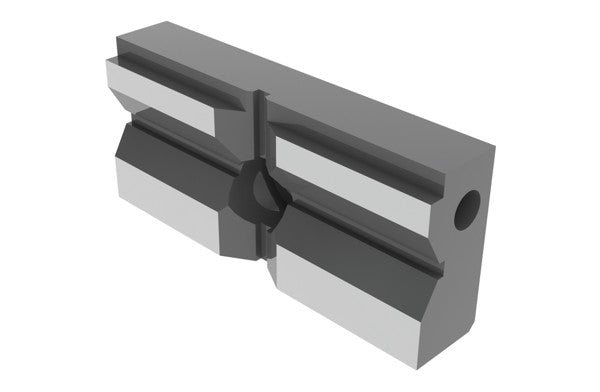

| Name | Ceratizit HSG.125 Prismatic Jaw 80893128 | |
| EDP # | 0755178 | |
| Weight (1 pc.) | 21.0 oz | 592 g |

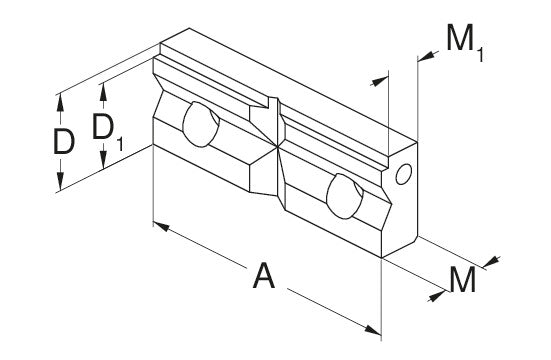

| A | 4.9213" | 125.000 mm |
| D | 1.5748" | 40.000 mm |
| D1 | 1.4173" | 36.000 mm |
| Clamping Ø | 0.4331" - 1.6142" | 11.000 - 41.000 mm |
| M | 0.7008" | 17.800 mm |
| M1 | 0.5827" | 14.800 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
