Description
Ceratizit Article Number: 8091331500
Ceratizit Material Number: 8091331500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

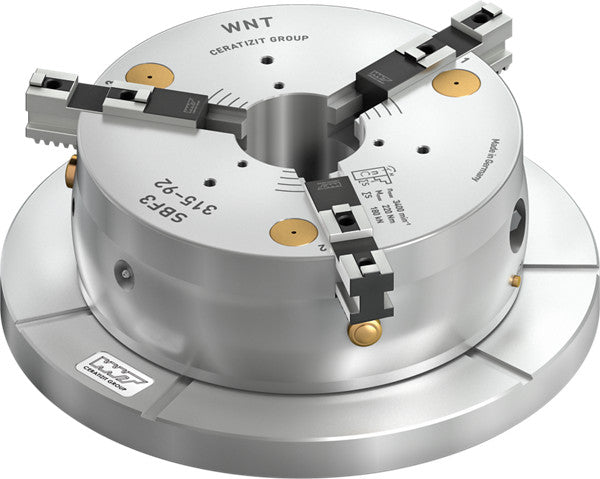

| Name | Ceratizit SBF-3.315.92.153 Three-jaw Chuck | |
| EDP # | 0755342 | |
| Weight (1 pc.) | 4092.0 oz | 116000 g |

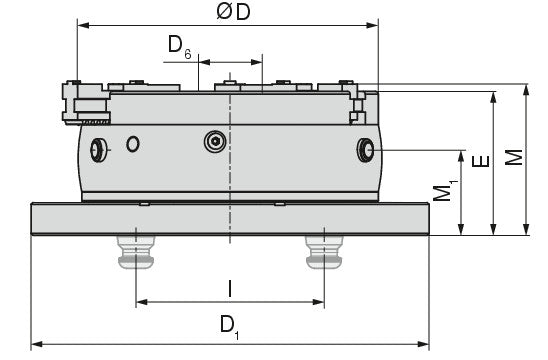

| D | 12.4016" | 315.000 mm |
| M | 6.3331" | 160.860 mm |
| M1 | 3.5630" | 90.500 mm |
| E | 6.0236" | 153.000 mm |
| Tooth pitch | 0.2756" | 7.000 mm |
| Stroke per Jaw | 0.3898" | 9.900 mm |
| D1 | 16.6535" | 423.000 mm |
| D6 | 3.6220" | 92.000 mm |
| Maximum clamping force / MXC | 180 kN | |
| Designation | SBF-3.315.92.153 | |
| Torque maximum / TQX | 220 Nm | |
| Drive size / DRVS | 0.6299" | 16.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
