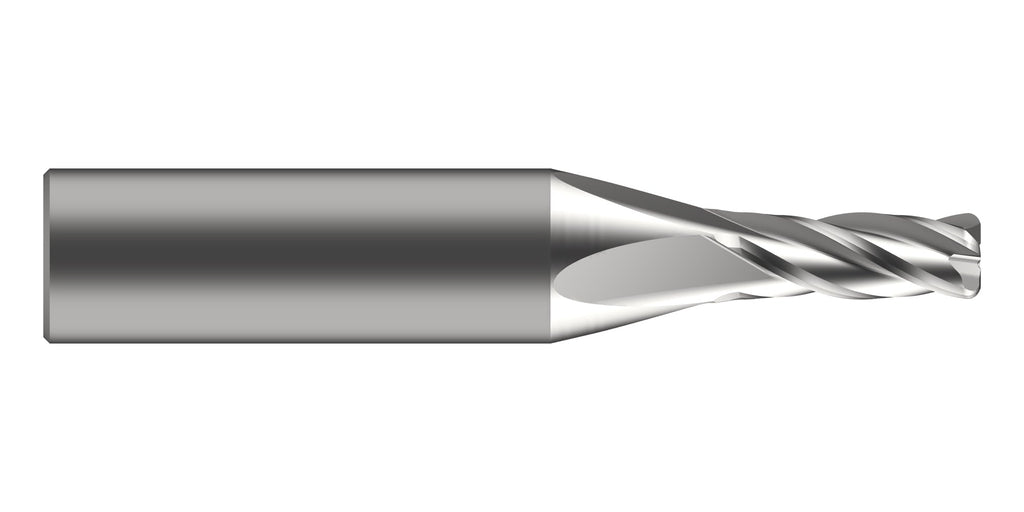

Representative image of tool

HAW20J4.763R0.76 (0408095)

  • $19.58
    Unit price per
  • Discount $8.38


The 'Orange' line of tooling is designed specifically for cutting nickel-based high temperature superalloys.

The 'Chirper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).

'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.

Tool Properties
Name HAW20J4.763R0.76 (0408095)
EDP # 0408095
Material High-Temp Super-Alloys
Application General Milling <20k RPM (Stripper)
Form End Mill - Bull / Rounded Corner
Cutting Diameter 0.1875" 4.763 mm
Corner Radius 0.0299" 0.760 mm
Taper per Side 0.0°
Length of Cut 0.5079" 12.900 mm
Reach 0.5079" 12.900 mm
Minimum Extension 0.9" 23.4 mm
Maximum Extension 1.4" 36.5 mm
Shank Diameter h6 0.3750" 9.525 mm
Overall Length 2.0" 51 mm
Cutting Edges 4
