Description
The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.
The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

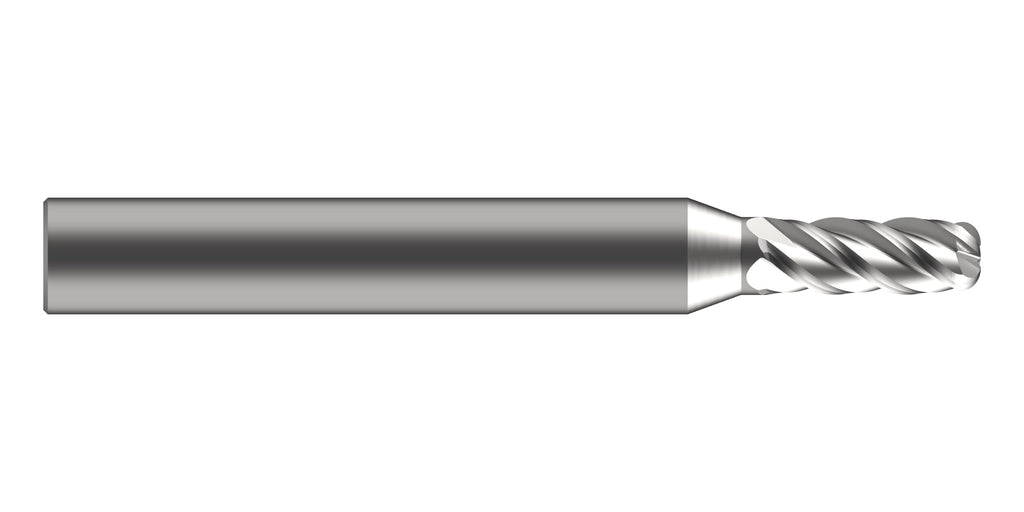

| Name | EAG20G4.200R1.40 (0409322) | |
| EDP # | 0409322 | |
| Material | Titanium | Application | General Milling <20k RPM (Striper) |
| Form | End Mill - Bull / Rounded Corner | |
| Cutting Diameter | 0.1654" | 4.200 mm |
| Corner Radius | 0.0551" | 1.400 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.4488" | 11.400 mm |
| Reach | 0.4488" | 11.400 mm |
| Minimum Extension | 0.6" | 16.0 mm |
| Maximum Extension | 1.6" | 41.3 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.0" | 51 mm |
| Cutting Edges | 4 | |
