Description
The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.
The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

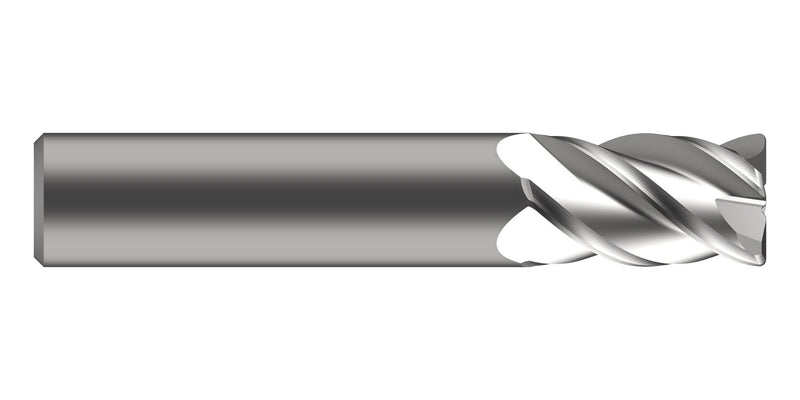

| Name | EAG20J9.525R0.51 | |
| EDP # | 0410392 | |
| Material | Titanium | Application | General Milling <20k RPM (Striper) |
| Form | End Mill - Bull / Rounded Corner | |
| Cutting Diameter | 0.3750" | 9.525 mm |
| Corner Radius | 0.0201" | 0.510 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.6378" | 16.200 mm |
| Reach | 0.6378" | 16.200 mm |
| Minimum Extension | 0.8" | 20.0 mm |
| Maximum Extension | 1.4" | 36.5 mm |
| Shank Diameter h6 | 0.3750" | 9.525 mm |
| Overall Length | 2.0" | 51 mm |
| Cutting Edges | 4 | |
| Tolerance Class | null | |
