Description
The 'Orange' line of tooling is designed specifically for cutting nickel-based high temperature superalloys.
The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
Previously known as "Zedaro HAW25G3.175R1.59 (SPED0333) (0458550)"
Tool Properties | ||
---|---|---|

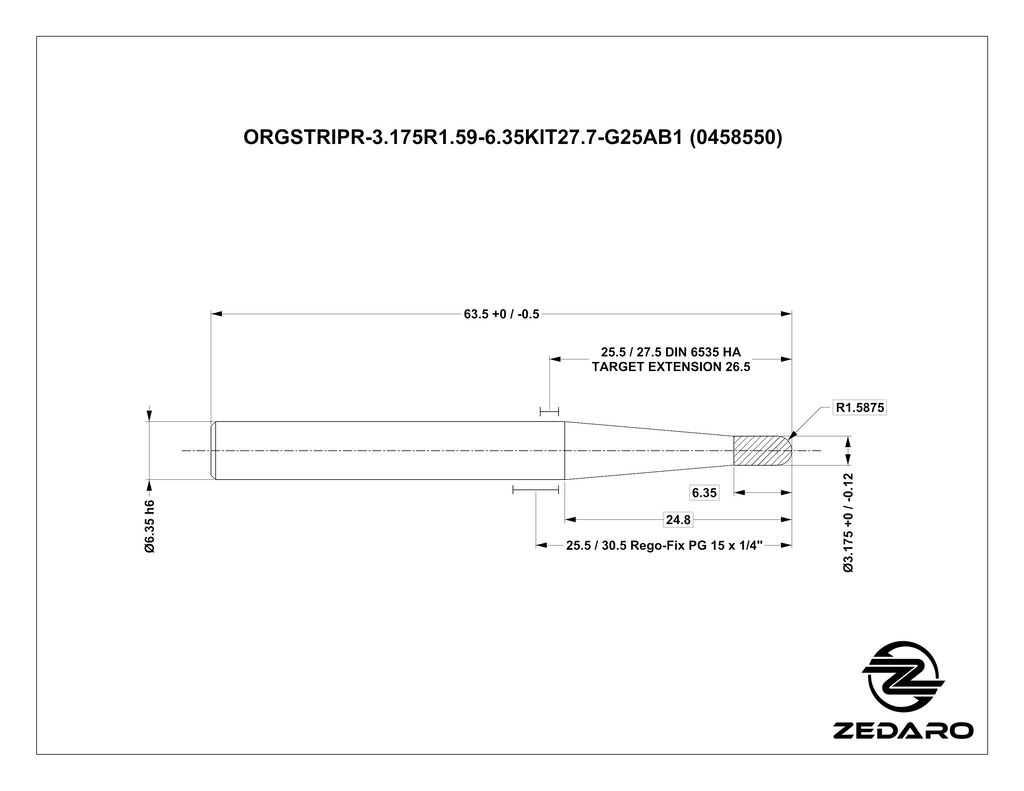

Name | ORGSTRIPR-3.175R1.59-6.35KIT24.8-G25AB1 | |
EDP # | 0458550 | |
Material | High-Temp Super-Alloys | Application | General Milling <20k RPM (Striper) |

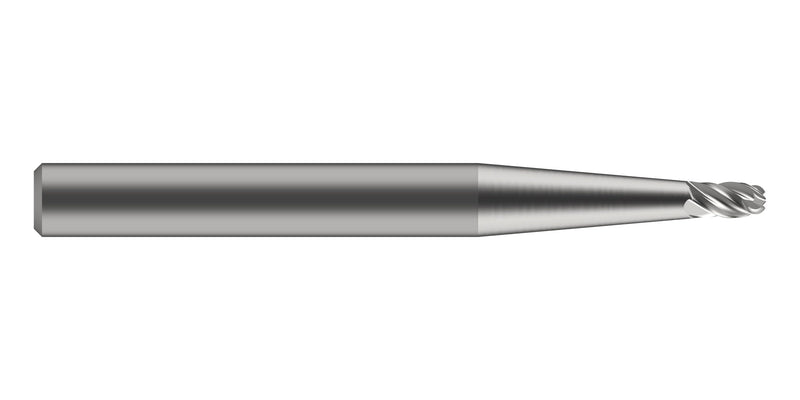

Form | End Mill - Ball | |
Cutting Diameter | 0.1250" | 3.175 mm |
Corner Radius | 0.0626" | 1.590 mm |
Taper per Side | 0.0° | |
Length of Cut | 0.2500" | 6.350 mm |
Reach | 0.2500" | 6.350 mm |
Minimum Extension | 1.0" | 24.8 mm |
Maximum Extension | 2.0" | 50.8 mm |
Shank Diameter h6 | 0.2500" | 6.350 mm |
Overall Length | 2.5" | 63 mm |
Cutting Edges | 4 | |
Tolerance Class | h7 |
Cutting Parameters - Point Milling | ||
Coolant | Low Pressure | |
Tool Extension (Stickout) | 1.0827" | 27.500 mm |
Step Over (Radial, Ae) | 0.0050" | 0.127 mm |
Step Down (Axial, Ap) | 0.0020" | 0.051 mm |
Spindle Speed (S) | 4000 RPM | |
Feed Rate (F) | 8 in/min | 200 mm/min |
Cutting Speed (Vc) | 131 ft/min | 40 m/min |
