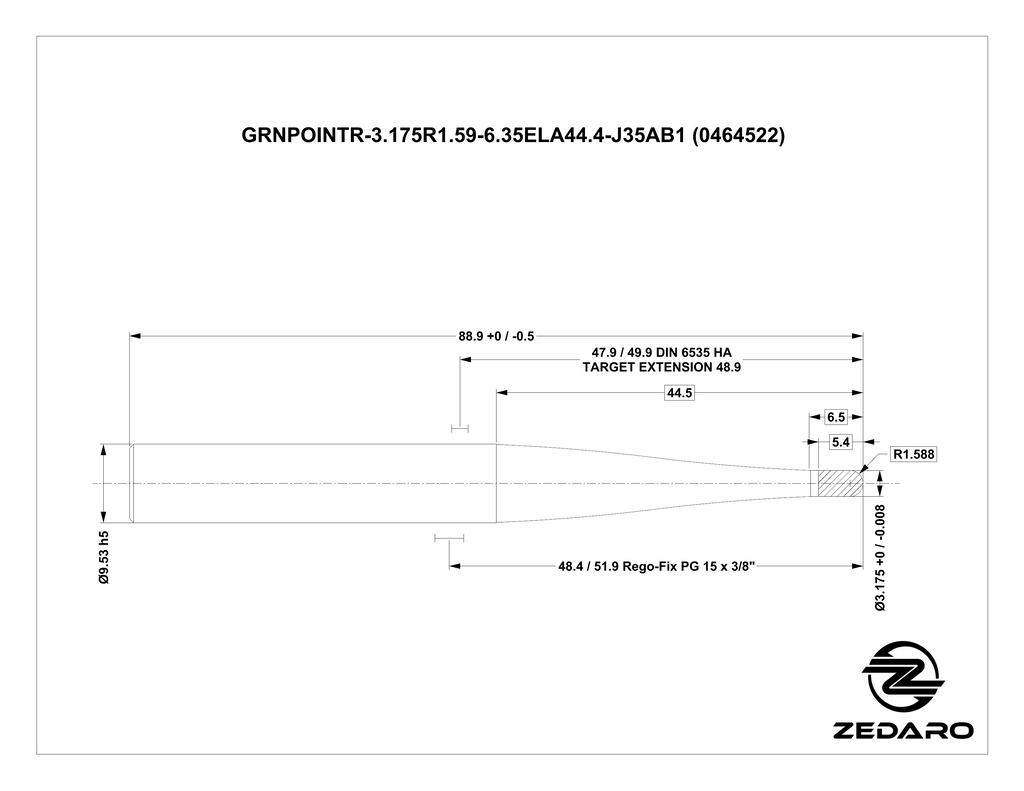

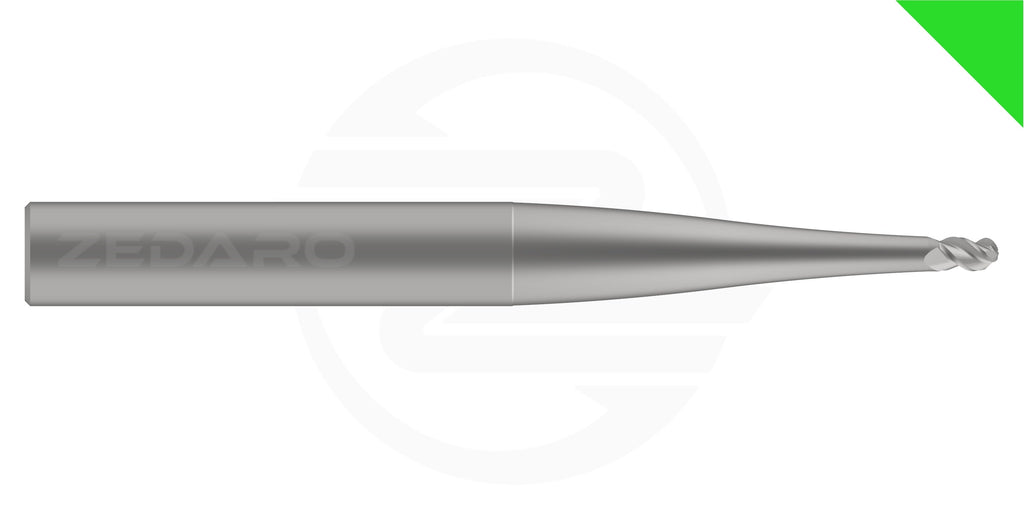

GRNPOINTR-3.175R1.59-6.35ELA44.4-J35AB1 (0464522)

Sale price$242.68
In stock (9 units), ready to be shipped


The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)

The 'Pointer' line is a tight-tolerance 3D point/ball finishing tool which uses only the tip of the tool for cutting. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.

'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.

Tool Properties
Name GRNPOINTR-3.175R1.59-6.35ELA44.4-J35AB1 (0464522)
EDP # 0464522
Material Wrought Aluminum
Application Finish 3D Point Milling >20k RPM (Pointer)
Form End Mill - Ball
Cutting Diameter 0.1250" 3.175 mm
Corner Radius 0.0626" 1.590 mm
Taper per Side 0.0°
Length of Cut 0.2126" 5.400 mm
Reach 0.2500" 6.350 mm
Minimum Extension 1.7" 44.4 mm
Maximum Extension 2.9" 74.6 mm
Shank Diameter h6 0.3750" 9.525 mm
Overall Length 3.5" 89 mm
Cutting Edges 3
