Description
The 'Orange' line of tooling is designed specifically for cutting nickel-based high temperature superalloys.
The 'Picker' line is a tight-tolerance 3D point/ball finishing tool which uses only the tip of the tool for cutting. This line is intended for machine tools with spindles capable of speeds over 20K rpm.
'V' form tools are excellent for milling in confined areas and have optimal strength and stiffness properties for deep slotting and flanking. Typically combined with 5-axis simultaneous tool paths in the aerospace industry and for other complex forms, they are also commonly used on 3-axis machines for generating drafted walls; especially in the mold making industry.
| Tool Properties | ||
|---|---|---|
| Name | ORGPICKER-1.000V2.00-2.00MAG31.5-G25AB1 | |
| EDP # | 0464619 | |
| Material | High-Temp Super-Alloys | Application | Finish 3D Point Milling <20k RPM (Picker) |

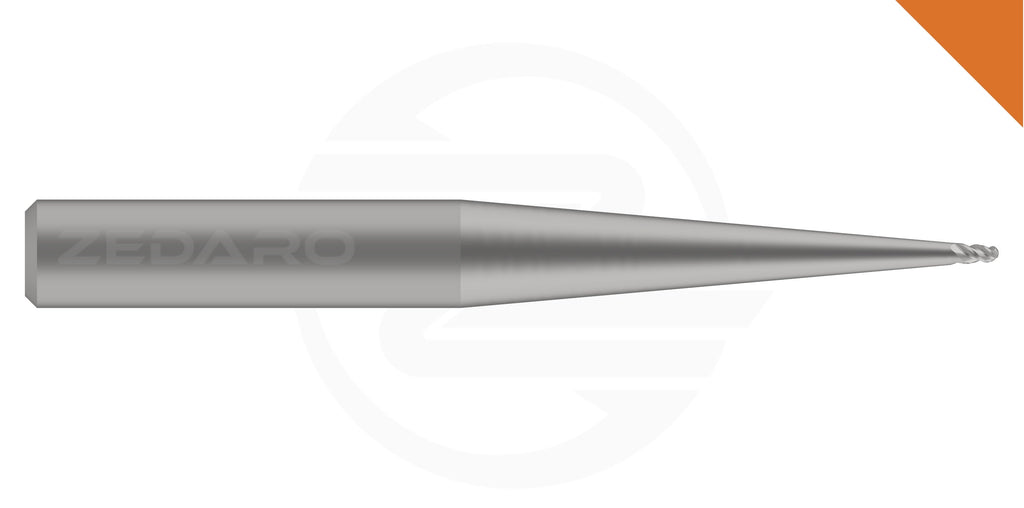

| Form | Tapered Ball-Nose End Mill | |
| Cutting Diameter | 0.0394" | 1.000 mm |
| Taper per Side | 5.0° | |
| Length of Cut | 0.0787" | 2.000 mm |
| Reach | 0.0787" | 2.000 mm |
| Minimum Extension | 1.2" | 31.5 mm |
| Maximum Extension | 2.1" | 54.0 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.5" | 63 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h6 | |
| Cutting Parameters - Point Milling | ||
| Coolant | Low Pressure | |
| Tool Extension (Stickout) | 1.0827" | 27.500 mm |
| Step Over (Radial, Ae) | 0.0050" | 0.127 mm |
| Step Down (Axial, Ap) | 0.0020" | 0.051 mm |
| Spindle Speed (S) | 6000 RPM | |
| Feed Rate (F) | 11 in/min | 270 mm/min |
| Cutting Speed (Vc) | 62 ft/min | 19 m/min |
