Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Banger' line is designed for aggressive roughing and machine tools capable of spindle speeds greater than 20K rpm.

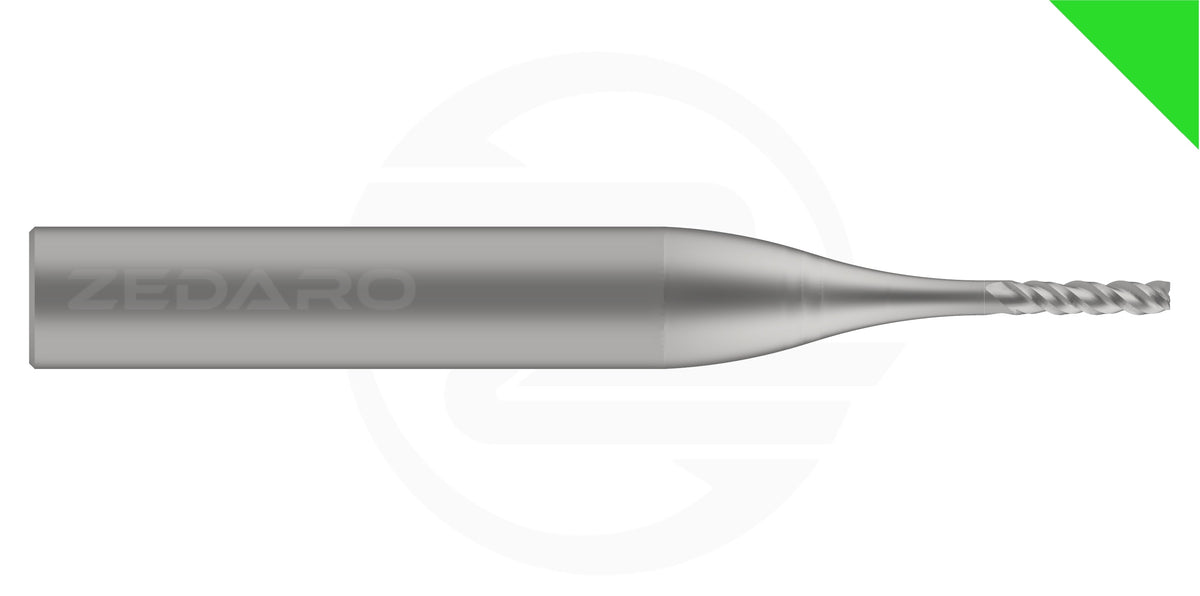

'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|
| Name | GRNBANGER-1.500R0.00-6.00CON25.4-G20AB1 | |
| EDP # | 0636857 | |
| Material | Wrought Aluminum | Application | Rough 3D Milling >20k RPM (Banger) |
| Form | End Mill - Flat | |
| Cutting Diameter | 0.0591" | 1.500 mm |
| Corner Radius | 0.0000" | 0.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.2362" | 6.000 mm |
| Reach | 0.2362" | 6.000 mm |
| Minimum Extension | 1.0" | 25.4 mm |
| Maximum Extension | 1.6" | 41.3 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.0" | 51 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h9 | |
| Cutting Parameters - General Roughing @42K | ||
| Coolant | Low Pressure | |
| Tool Extension (Stickout) | 1.0000" | 25.400 mm |
| Step Over (Radial, Ae) | 0.0197" | 0.500 mm |
| Step Down (Axial, Ap) | 0.0787" | 2.000 mm |
| Spindle Speed (S) | 42000 RPM | |
| Feed Rate (F) | 79 in/min | 2000 mm/min |
| Cutting Speed (Vc) | 649 ft/min | 198 m/min |
| Mat. Removal Rate (MRR): | 0.12 in³/min | 2.00 cm³/min |
| Cutting Parameters - Flank Finishing @42K | ||
| Coolant | Low Pressure | |
| Tool Extension (Stickout) | 1.0000" | 25.400 mm |
| Step Over (Radial, Ae) | 0.0079" | 0.200 mm |
| Step Down (Axial, Ap) | 0.2362" | 6.000 mm |
| Spindle Speed (S) | 42000 RPM | |
| Feed Rate (F) | 98 in/min | 2500 mm/min |
| Cutting Speed (Vc) | 649 ft/min | 198 m/min |
