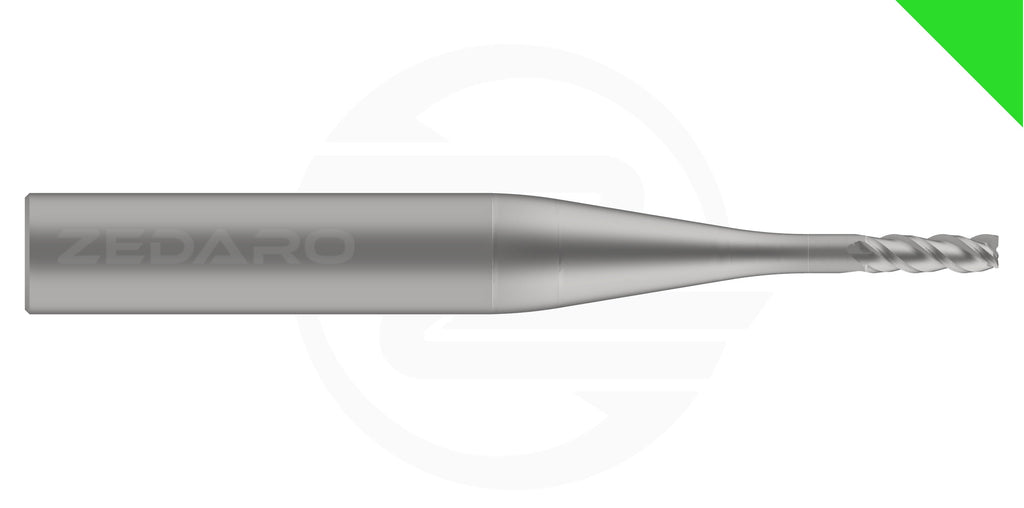

GRNBANGER-2.000R0.00-6.00EAG25.4-G20AB1 (0636858)


Price:
Sale price$52.56
Stock:
In stock (19 units), ready to be shipped

Description

The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)

The 'Banger' line is designed for aggressive roughing and machine tools capable of spindle speeds greater than 20K rpm.

'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.

Tool Properties
Name GRNBANGER-2.000R0.00-6.00EAG25.4-G20AB1 (0636858)
EDP # 0636858
Material Wrought Aluminum
Application Rough 3D Milling >20k RPM (Banger)
Form End Mill - Flat
Cutting Diameter 0.0787" 2.000 mm
Corner Radius 0.0000" 0.000 mm
Taper per Side 0.0°
Length of Cut 0.2362" 6.000 mm
Reach 0.2362" 6.000 mm
Minimum Extension 1.0" 25.4 mm
Maximum Extension 1.6" 41.3 mm
Shank Diameter h6 0.2500" 6.350 mm
Overall Length 2.0" 51 mm
Cutting Edges 3

Cutting Parameters - Flank Roughing @42K
Coolant Low Pressure
Tool Extension (Stickout) 1.0000" 25.400 mm
Step Over (Radial, Ae) 0.0197" 0.500 mm
Step Down (Axial, Ap) 0.2165" 5.500 mm
Spindle Speed (S) 42000 RPM
Feed Rate (F) 157 in/min 4000 mm/min
Cutting Speed (Vc) 866 ft/min 264 m/min
Mat. Removal Rate (MRR): 0.67 in³/min 11.0 cm³/min
