The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
Tool Properties |
Name |

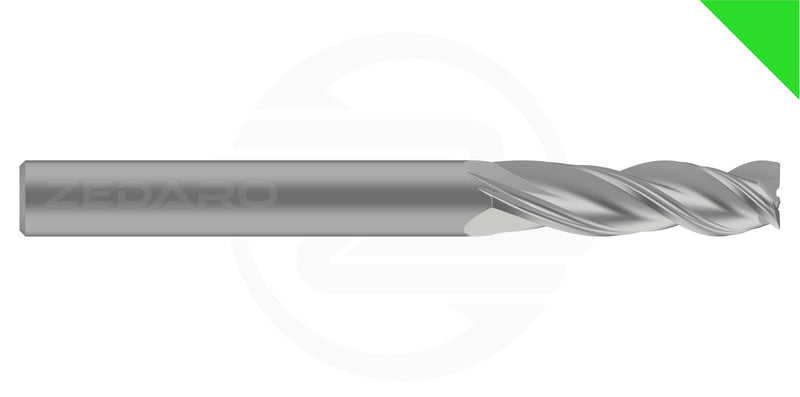

GRNSTRIPR-6.350R0.00-23.5LAM32.0-G25AB1 (0637047) |
EDP # |
0637047 |
Material |
Wrought Aluminum |
Application |
General Milling <20k RPM (Striper) |
Form |
End Mill - Flat |
Cutting Diameter |
0.2500" |
6.350 mm |
Corner Radius |
0.0000" |
0.000 mm |
Taper per Side |
0.0° |
Length of Cut |
0.9252" |
23.500 mm |
Reach |
0.9252" |
23.500 mm |
Minimum Extension |
1.3" |
32.0 mm |
Maximum Extension |
2.1" |
54.0 mm |
Shank Diameter h6 |
0.2500" |
6.350 mm |
Overall Length |
2.5" |
63 mm |
Cutting Edges |
3 |
<!-CUTTING PARAMS=====================================================>
Cutting Parameters - Flank Roughing @20K |
Coolant |
Low Pressure |
Tool Extension (Stickout) |
0.7874" |
20.000 mm |
Step Over (Radial, Ae) |
0.0250" |
0.635 mm |
Step Down (Axial, Ap) |
0.7500" |
19.050 mm |
Spindle Speed (S) |
20000 RPM |
Feed Rate (F) |
157 in/min |
4000 mm/min |
Cutting Speed (Vc) |
1309 ft/min |
399 m/min |
Mat. Removal Rate (MRR): |
2.95 in³/min |
48.4 cm³/min |
Cutting Parameters - Slot Roughing @20K |
Coolant |
High Pressure |
Tool Extension (Stickout) |
0.7874" |
20.000 mm |
Step Down (Axial, Ap) |
0.7500" |
19.050 mm |
Spindle Speed (S) |
20000 RPM |
Feed Rate (F) |
20 in/min |
508 mm/min |
Cutting Speed (Vc) |
1309 ft/min |
399 m/min |
Mat. Removal Rate (MRR): |
3.75 in³/min |
61.5 cm³/min |
Cutting Parameters - Flank Finishing @20K |
Coolant |
Low Pressure |
Tool Extension (Stickout) |
0.7874" |
20.000 mm |
Step Over (Radial, Ae) |
0.0039" |
0.100 mm |
Step Down (Axial, Ap) |
0.7500" |
19.050 mm |
Spindle Speed (S) |
20000 RPM |
Feed Rate (F) |
31 in/min |
787 mm/min |
Cutting Speed (Vc) |
1309 ft/min |
399 m/min |
>
