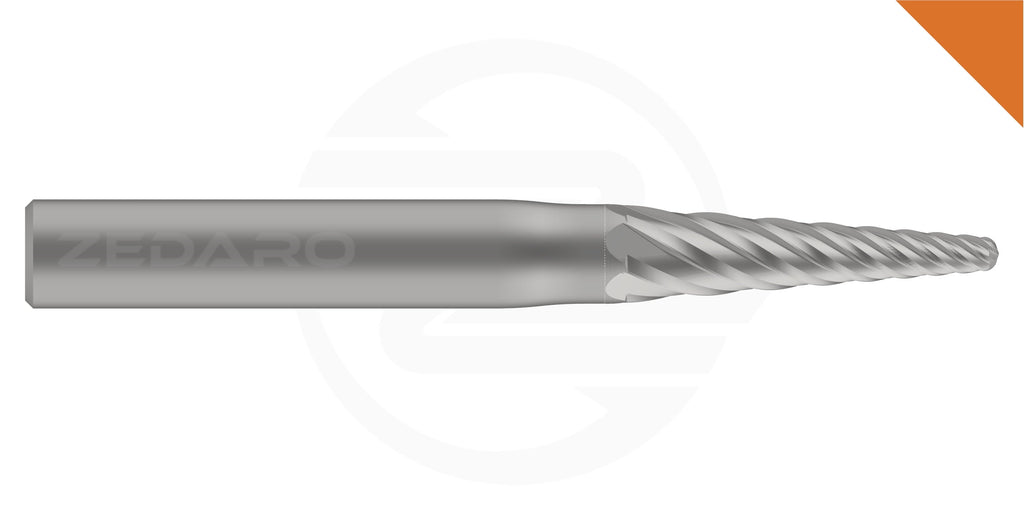

ORGBEATER-3.175V31.8-999.MAG39.1-J35CE1 (0637281)

Sale price$282.94
Not in stock - Available to order


The 'Orange' line of tooling is designed specifically for cutting nickel-based high temperature superalloys.

The 'Beater' line is designed for aggressive roughing and machine tools capable of spindle speeds greater than 20K rpm. The Beater incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size) as well as aggressive chip breakers designed to reduce chip size. This line of cutting tools is not designed to produce finish surfaces, but rather to achieve maximum material removal rates.

'V' form tools are excellent for milling in confined areas and have optimal strength and stiffness properties for deep slotting and flanking. Typically combined with 5-axis simultaneous tool paths in the aerospace industry and for other complex forms, they are also commonly used on 3-axis machines for generating drafted walls; especially in the mold making industry.

Tool Properties
Name ORGBEATER-3.175V31.8-999.MAG39.1-J35CE1 (0637281)
EDP # 0637281
Material High-Temp Super-Alloys
Application Rough 3D Milling w/ Chip Breakers >20k RPM (Beater)
Form Tapered Ball-Nose End Mill
Cutting Diameter 0.1250" 3.175 mm
Cutting Length 1.2520" 31.800 mm
Taper per Side 5.0°
Length of Cut 1.2520" 31.800 mm
Reach (No flank reach limit)
Minimum Extension 1.5" 39.1 mm
Maximum Extension 2.9" 74.6 mm
Shank Diameter h6 0.3750" 9.525 mm
Overall Length 3.5" 89 mm
Cutting Edges 6
