Description
The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.
The 'Grazer' line is a tight-tolerance 3D finishing tool intended for machine tools with spindle speeds up to 20K rpm and which can be used for almost anything.
'V' form tools are excellent for milling in confined areas and have optimal strength and stiffness properties for deep slotting and flanking. Typically combined with 5-axis simultaneous tool paths in the aerospace industry and for other complex forms, they are also commonly used on 3-axis machines for generating drafted walls; especially in the mold making industry.
| Tool Properties | ||
|---|---|---|
| Name | PURGRAZER-6.000V10.0-34.0MAN44.5-J35CE1 (0637570) | |
| EDP # | 0637570 | |
| Material | Titanium | Application | Finish 3D Milling <20k RPM (Grazer) |

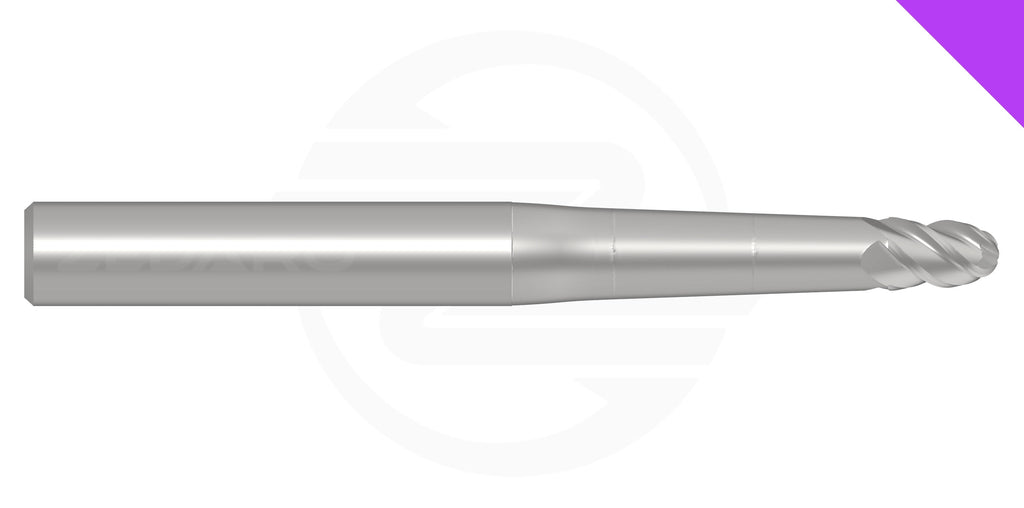

| Form | Tapered Ball-Nose End Mill | |
| Cutting Diameter | 0.2362" | 6.000 mm |
| Cutting Length | 0.3937" | 10.000 mm |
| Taper per Side | 3.0° | |
| Length of Cut | 0.3937" | 10.000 mm |
| Reach | 1.3386" | 34.000 mm |
| Minimum Extension | 1.8" | 44.5 mm |
| Maximum Extension | 2.9" | 74.6 mm |
| Shank Diameter h6 | 0.3750" | 9.525 mm |
| Overall Length | 3.5" | 89 mm |
| Cutting Edges | 4 | |
