Description
NOTE: This item is discontinued and has been replaced by 0735541
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Shredder' line is a general purpose high-speed roughing and finishing tool designed for machine tools capable of spindle speeds greater than 20K rpm.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

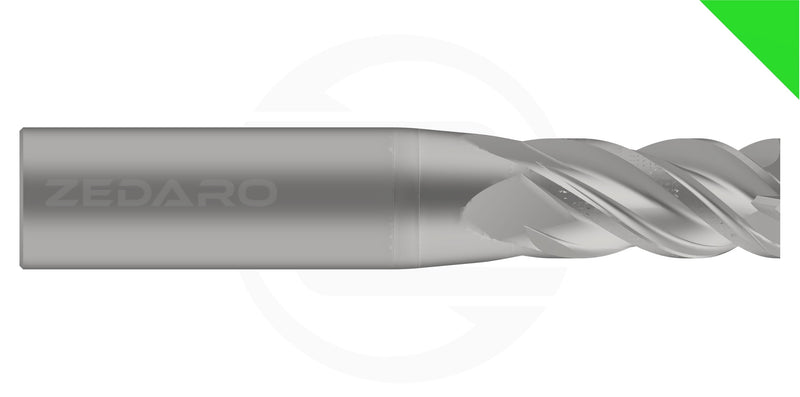

| Name | GRNSHREDR-8.000R0.60-16.0KIT25.4-J20AB1 | |
| EDP # | 0637754 | |
| Material | Wrought Aluminum | |
| Application | General Milling >20k RPM (Shredder) | |
| Form | End Mill - Bull / Rounded Corner | |
| Cutting Diameter | 0.3150" | 8.000 mm |
| Corner Radius | 0.0236" | 0.600 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.6299" | 16.000 mm |
| Reach | 0.6299" | 16.000 mm |
| Minimum Extension | 1.0" | 25.4 mm |
| Maximum Extension | 1.2" | 31.7 mm |
| Shank Diameter h6 | 0.3750" | 9.525 mm |
| Overall Length | 2.0" | 51 mm |
| Cutting Edges | 4 | |
| Cutting Parameters - General Roughing @42K | ||
| Coolant | Low Pressure | |
| Tool Extension (Stickout) | 0.9843" | 25.000 mm |
| Step Over (Radial, Ae) | 0.0787" | 2.000 mm |
| Step Down (Axial, Ap) | 0.1969" | 5.000 mm |
| Spindle Speed (S) | 42000 RPM | |
| Feed Rate (F) | 236 in/min | 6000 mm/min |
| Cutting Speed (Vc) | 3463 ft/min | 1056 m/min |
| Mat. Removal Rate (MRR): | 3.63 in³/min | 59.5 cm³/min |
| Cutting Parameters - General Finishing @42K | ||
| Coolant | Low Pressure | |
| Tool Extension (Stickout) | 0.9843" | 25.000 mm |
| Step Over (Radial, Ae) | 0.0039" | 0.100 mm |
| Step Down (Axial, Ap) | 0.1969" | 5.000 mm |
| Spindle Speed (S) | 42000 RPM | |
| Feed Rate (F) | 118 in/min | 3000 mm/min |
| Cutting Speed (Vc) | 3463 ft/min | 1056 m/min |
>
