Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Glider' line is a tight-tolerance 3D finishing tool intended for machine tools with spindle speeds greater than 20K rpm and which can be used for almost anything.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

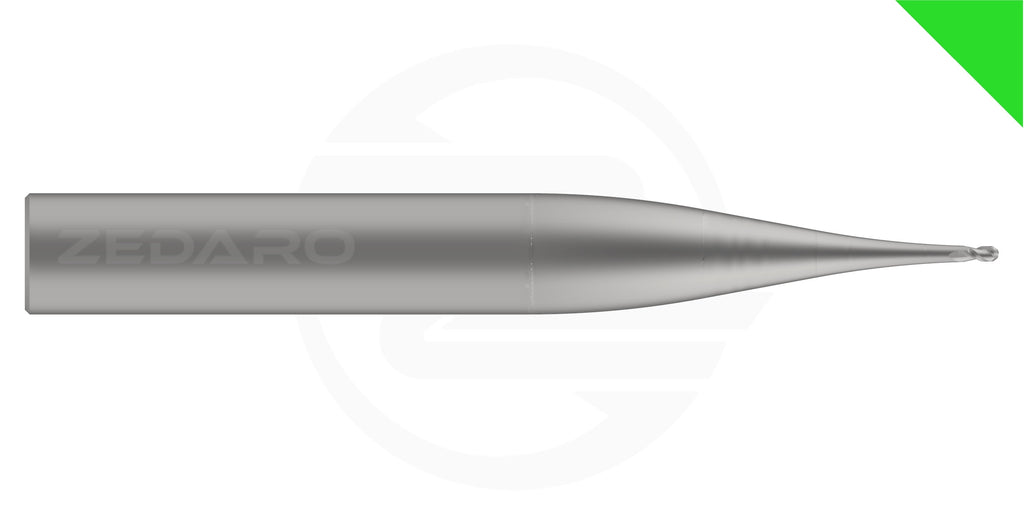

| Name | GRNGLIDER-0.794R0.40-0637755-G20AB1 | |
| EDP # | 0637755 | |
| Material | Wrought Aluminum | Application | Finish 3D Milling >20k RPM (Glider) |
| Form | End Mill - Ball | |
| Cutting Diameter | 0.0313" | 0.794 mm |
| Corner Radius | 0.0157" | 0.400 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.0630" | 1.600 mm |
| Reach | 0.0630" | 1.600 mm |
| Minimum Extension | 1.0" | 25.4 mm |
| Maximum Extension | 1.6" | 41.3 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.0" | 51 mm |
| Cutting Edges | 2 | |
| Tolerance Class | null | |
| Cutting Parameters - Point Finishing @42K | ||
| Coolant | Low Pressure | |
| Tool Extension (Stickout) | 1.0000" | 25.400 mm |
| Step Over (Radial, Ae) | 0.0039" | 0.100 mm |
| Step Down (Axial, Ap) | 0.0039" | 0.100 mm |
| Spindle Speed (S) | 42000 RPM | |
| Feed Rate (F) | 39 in/min | 1000 mm/min |
| Cutting Speed (Vc) | 344 ft/min | 105 m/min |
