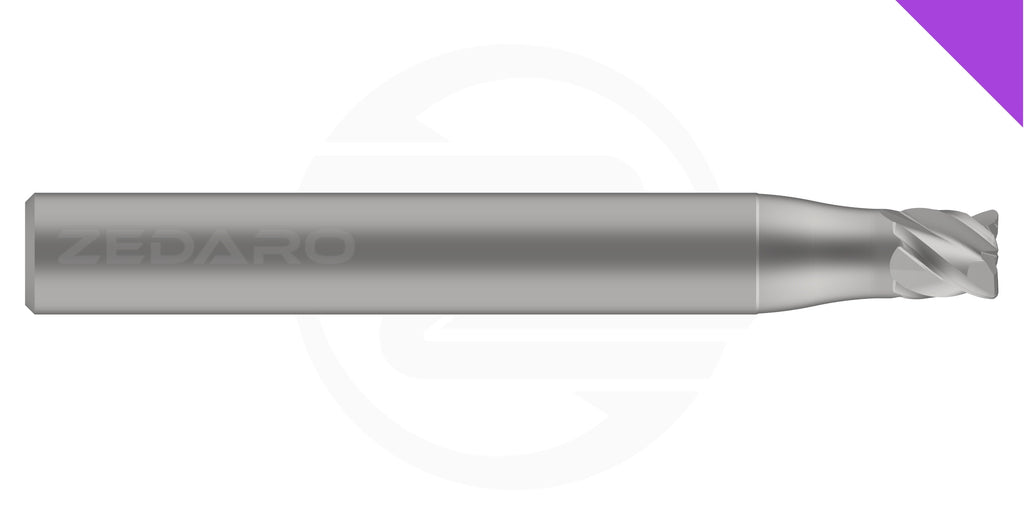

PURCHIRPR-4.763R0.38-6.35HAW12.7-G20AB1 (0637829)

Sale price$42.56
Not in stock - Available to order


The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.

The 'Chirper' line is a tight-tolerance 3D finishing tool which is intended for flanking; primarily using the side of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.

'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.

Tool Properties
Name PURCHIRPR-4.763R0.38-6.35HAW12.7-G20AB1 (0637829)
EDP # 0637829
Material Titanium
Application Finish Flank Milling <20k RPM (Chirper)
Form End Mill - Bull / Rounded Corner
Cutting Diameter 0.1875" 4.763 mm
Corner Radius 0.0150" 0.380 mm
Taper per Side 0.0°
Length of Cut 0.1890" 4.800 mm
Reach 0.2500" 6.350 mm
Minimum Extension 0.5" 12.7 mm
Maximum Extension 1.6" 41.3 mm
Shank Diameter h6 0.2500" 6.350 mm
Overall Length 2.0" 51 mm
Cutting Edges 4
