Description
The 'Yellow' line of tooling is designed specifically for cutting stainless steel alloys.
The 'Glider' line is a tight-tolerance 3D finishing tool intended for machine tools with spindle speeds greater than 20K rpm and which can be used for almost anything.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

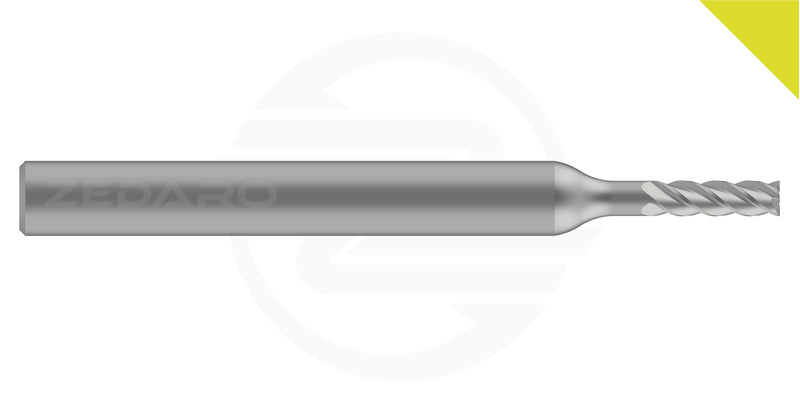

| Name | YELGLIDER-3.000R0.00-14.0VUL18.8-G25AB1 (0637960) | |
| EDP # | 0637960 | |
| Material | Stainless Steel | Application | Finish 3D Milling >20k RPM (Glider) |
| Form | End Mill - Flat | |
| Cutting Diameter | 0.1181" | 3.000 mm |
| Corner Radius | 0.0000" | 0.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.3780" | 9.600 mm |
| Reach | 0.5512" | 14.000 mm |
| Minimum Extension | 0.7" | 18.8 mm |
| Maximum Extension | 2.1" | 54.0 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.5" | 63 mm |
| Cutting Edges | 4 | |
| Cutting Parameters - Flank Finishing @6.5K | ||
| Coolant | Low Pressure | |
| Tool Extension (Stickout) | 0.7500" | 19.050 mm |
| Step Over (Radial, Ae) | 0.0039" | 0.100 mm |
| Step Down (Axial, Ap) | 0.5512" | 14.000 mm |
| Spindle Speed (S) | 6500 RPM | |
| Feed Rate (F) | 8 in/min | 200 mm/min |
| Cutting Speed (Vc) | 201 ft/min | 61 m/min |
