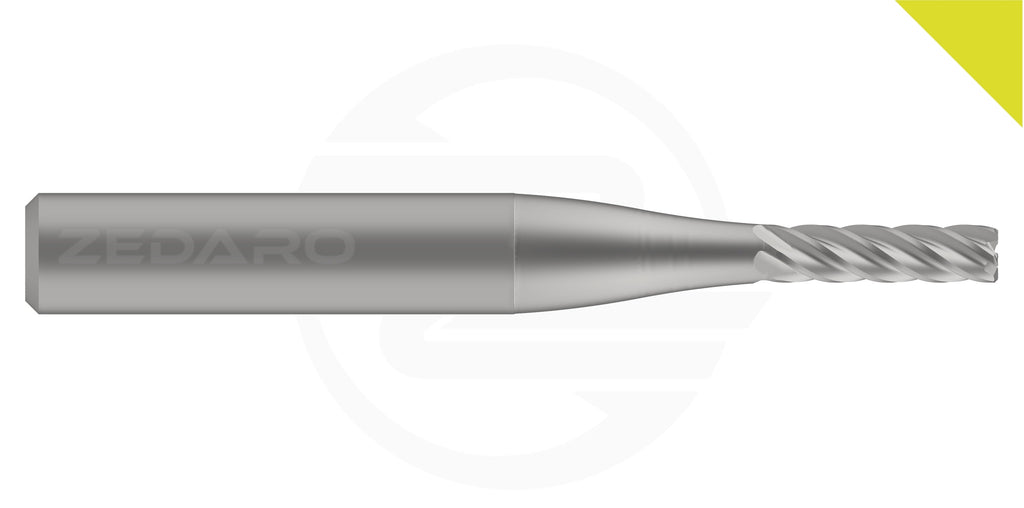

YELBRAWLR-3.000N0.15-12.0CON25.4-G20AB1 (0638207)

Sale price$40.16
Not in stock - Available to order


The 'Yellow' line of tooling is designed specifically for cutting stainless steel alloys.

The 'Brawler' line is designed for aggressive roughing and machine tools capable of spindle speeds up to 20K rpm. It incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size) as well as aggressive chip breakers designed to reduce chip size. This line of cutting tools is not designed to produce finish surfaces, but rather to achieve maximum material removal rates while still leaving a relatively smooth surface.

'N' form tools are simple corner-chamfered end mills. These are very similar to 'R' but with a chamfer instead of a radius. Note that square/flat end mills are classified under the 'R' form only.

Tool Properties
Name YELBRAWLR-3.000N0.15-12.0CON25.4-G20AB1 (0638207)
EDP # 0638207
Material Stainless Steel
Application Rough 3D Milling <20k RPM (Brawler)
Form Chamfered End Mill
Cutting Diameter 0.1181" 3.000 mm
Corner Size (45 deg.) 0.0059" 0.150 mm
Taper per Side 0.0°
Length of Cut 0.4724" 12.000 mm
Reach 0.4724" 12.000 mm
Minimum Extension 1.0" 25.4 mm
Maximum Extension 1.6" 41.3 mm
Shank Diameter h6 0.2500" 6.350 mm
Overall Length 2.0" 51 mm
Cutting Edges 5
<!-CUTTING PARAMS=====================================================>
Cutting Parameters - Flank Roughing @10K
Coolant Low Pressure
Tool Extension (Stickout) 1.0000" 25.400 mm
Step Over (Radial, Ae) 0.0197" 0.500 mm
Step Down (Axial, Ap) 0.3937" 10.000 mm
Spindle Speed (S) 10000 RPM
Feed Rate (F) 20 in/min 500 mm/min
Cutting Speed (Vc) 309 ft/min 94 m/min
Mat. Removal Rate (MRR): 0.15 in³/min 2.5 cm³/min
