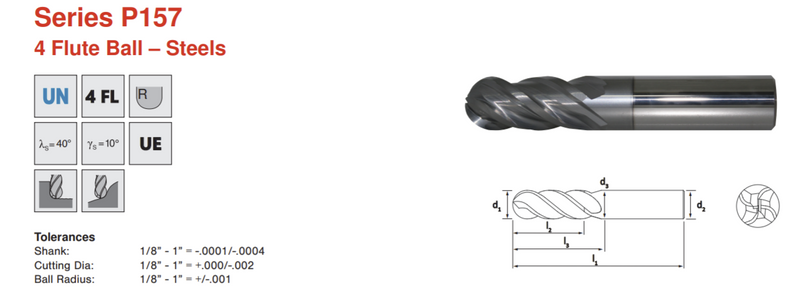

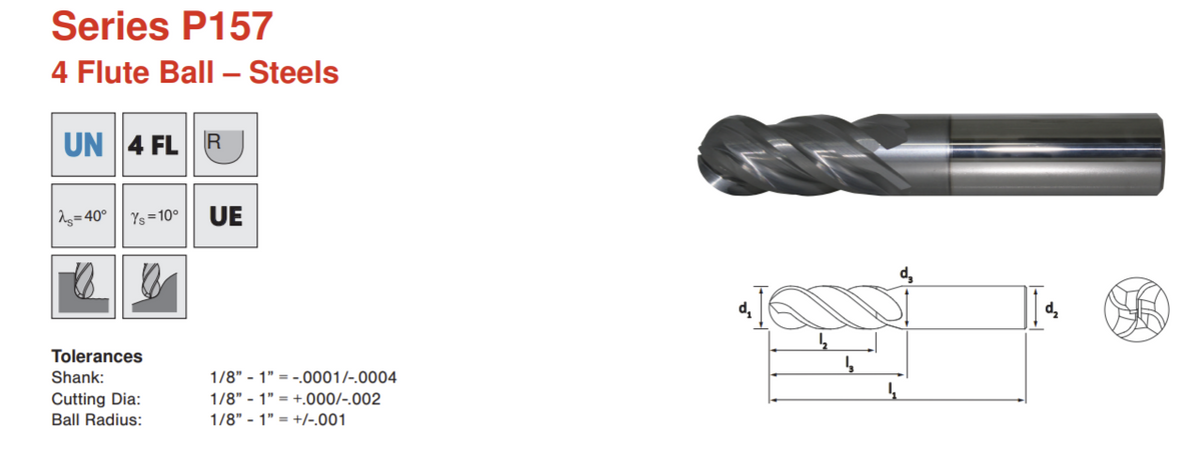

Ceratizit 3DX157-02500.07500.R04.R01250.HA.X104 Ball Nosed Cutter 5905525030 (0643044)

Sale price$51.07
Not in stock - Available to order


Ceratizit Article Number: 5905525030

Ceratizit Material Number: 12180672

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name Ceratizit 3DX157-02500.07500.R04.R01250.HA.X104 Ball Nosed Cutter 5905525030
EDP # 0643044
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) All Materials (White)
Weight (1 pc.) 1.0 oz 22.0 g

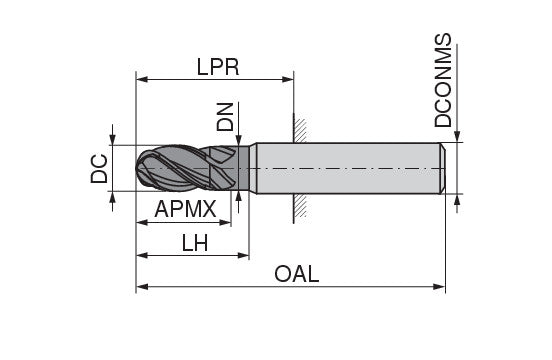

Cutting diameter / DC +0.000/-0.002 0.2500" 6.350 mm
Depth of cut maximum / APMX 0.7500" 19.050 mm
Protruding length / LPR 1.0827" 27.500 mm
Overall length / OAL 2.5000" 63.500 mm
Mounting spigot diameter / DCONMS -0.0001 / -0.0004 0.2500" 6.350 mm
Peripheral effective cutting edge count / ZEFP 4
Corner radius / RE 0.1250" 3.175 mm
Coating name / Grade (Ceratizit) / COATN AlTiN

Suitable Materials:

Property imageProperty imageProperty imageProperty image

Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
