GRNBANGER-8.000R4.00-22.0ELA26.0-J25AB1 (0643086)


Price:
Sale price$81.22
Stock:
Re-stocking soon

Description

The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys.

The 'Banger' line is designed for aggressive roughing and machine tools capable of spindle speeds greater than 20K rpm. It incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size) as well as aggressive chip breakers designed to reduce chip size. This line of cutting tools is not designed to produce finish surfaces, but rather to achieve maximum material removal rates while still leaving a relatively smooth surface.

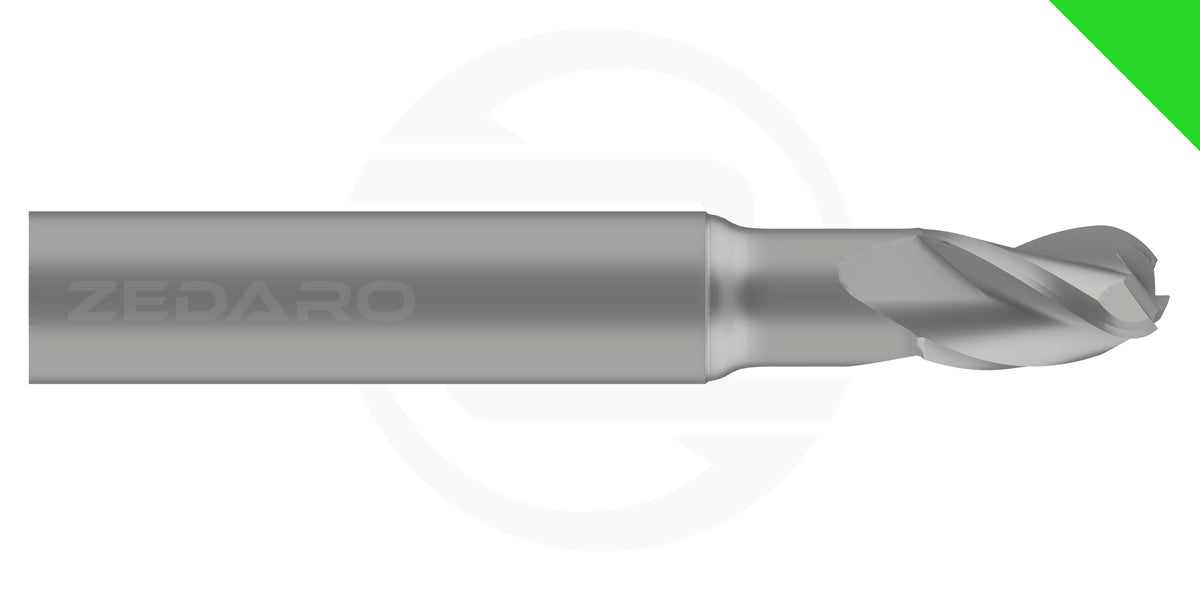

'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.

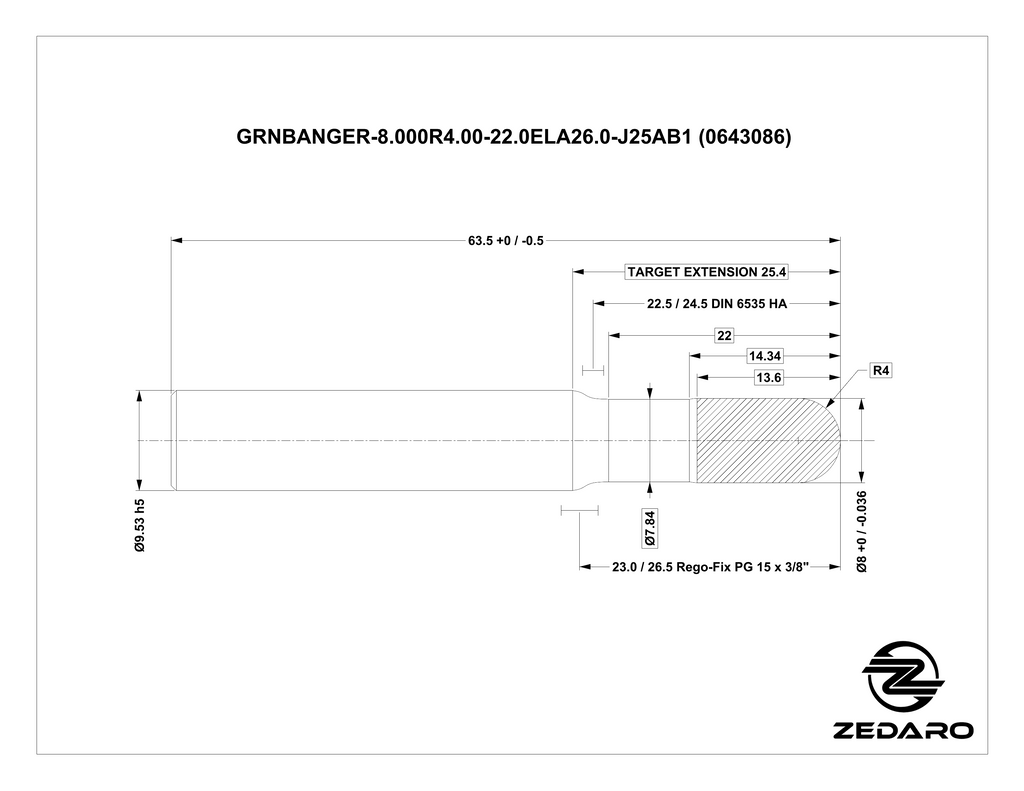

Tool Properties
Name GRNBANGER-8.000R4.00-22.0ELA26.0-J25AB1 (0643086)
EDP # 0643086
Material Wrought Aluminum
Application Rough 3D Milling >20k RPM (Banger)
Form End Mill - Ball
Cutting Diameter 0.3150" 8.000 mm
Corner Radius 0.1575" 4.000 mm
Taper per Side 0.0°
Length of Cut 0.5354" 13.600 mm
Reach 0.8661" 22.000 mm
Minimum Extension 1.0" 26.0 mm
Maximum Extension 1.9" 49.5 mm
Shank Diameter h6 0.3750" 9.525 mm
Overall Length 2.5" 63 mm
Cutting Edges 3
