Ceratizit 3D0220-03125.07500.R02.A00060.HA.B270 End Milling Cutter 5900331324 (0643510)

Sale price$56.30
Not in stock - Available to order


Ceratizit Article Number: 5900331324

Ceratizit Material Number: 12185469

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name Ceratizit 3D0220-03125.07500.R02.A00060.HA.B270 End Milling Cutter 5900331324
EDP # 0643510
Workpiece Material(s) Aluminum (Green) All Materials (White)
Weight (1 pc.) 1.0 oz 40.0 g

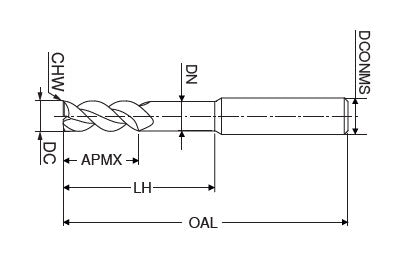

Cutting diameter / DC +0.000/-0.002 0.3125" 7.938 mm
Depth of cut maximum / APMX 0.7500" 19.050 mm
Neck Diameter / DN 0.3000" 7.620 mm
Head length / LH 1.0000" 25.400 mm
Protruding length / LPR 1.8976" 48.200 mm
Overall length / OAL 3.0000" 76.200 mm
Mounting spigot diameter / DCONMS -0.0001 / -0.0004 0.3125" 7.938 mm
Corner chamfer width / CHW 0.0060" 0.152 mm
Peripheral effective cutting edge count / ZEFP 2
Coating name / Grade (Ceratizit) / COATN blank

Suitable Materials:

Property image

Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
