Description

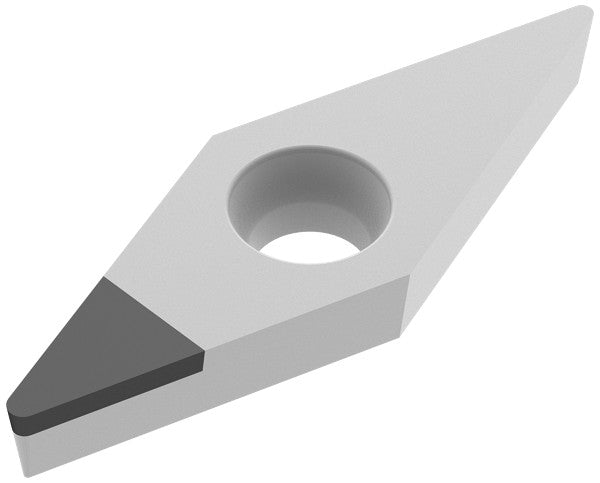

ISO: VCGW 160408FN_A3 CTDCD10 ANSI: VCGW 332FN_A3 CTDCD10 PCD TURNING INSERT TCE(NOI) = Design and number of equipped cutting edge corners
Mat No: 51000289, Article No: 7119140501
This product comes in packages of 10
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

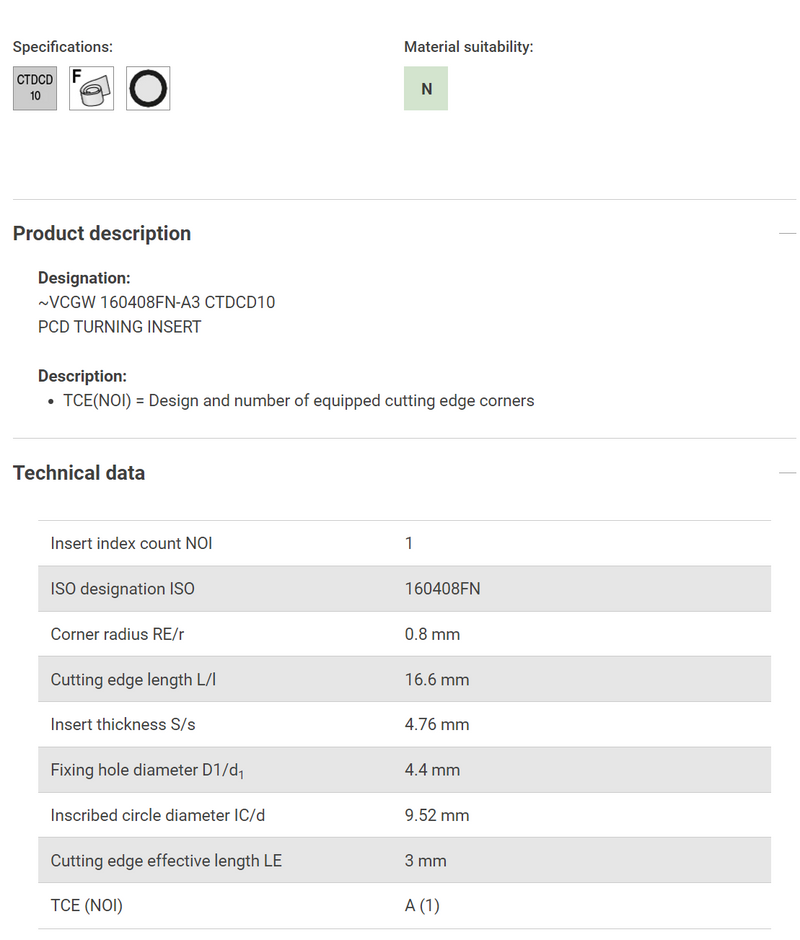

| Properties | ||
|---|---|---|
| Name | CERATIZIT ISO: VCGW 160408FN_A3 CTDCD10 ANSI: VCGW 332FN_A3 CTDCD10 PCD TURNING INSERT 51000289 (0643565) | |
| EDP # | 0643565 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.2 oz | 5.0 g |
| Insert index count NOI | 1 | |
| Coating name / Grade (Ceratizit) COATN | CTDCD10 | |
| designation ISO | 160408FN | |

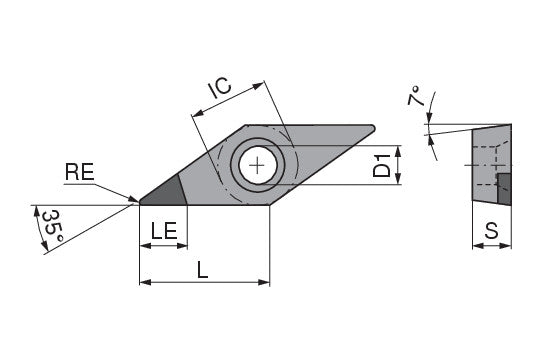

| Corner radius RE/r | 0.0315 inch | 0.8 mm |
| Cutting edge length L/l | 0.6535 inch | 16.6 mm |
| Insert thickness S/s | 0.1874 inch | 4.76 mm |
| Fixing hole diameter D1/d1 | 0.1732 inch | 4.4 mm |
| Inscribed circle diameter IC/d | 0.3748 inch | 9.52 mm |
| Cutting edge effective length LE | 0.1181 inch | 3 mm |
| TCE (NOI) | A (1) | |
Application & Properties:
Suitable Materials:
