CERATIZIT H.RD.16,0.30°.Z2.HA.EL150 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER 5225816000 (0649741)


Price:
Sale price$473.73
Stock:
Not in stock - Available to order

Description

H.RD.16,0.30°.Z2.HA.EL150 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER Radius accuracy: ± 0,005 mm

Mat No: 5225816000, Article No: 52258160

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT H.RD.16,0.30°.Z2.HA.EL150 TI2000 SOLID CARBIDE BALL NOSED MILLING CUTTER 5225816000 (0649741)
EDP # 0649741
Workpiece Material(s) All Materials (White)
Weight 15.6 oz 440.9 g

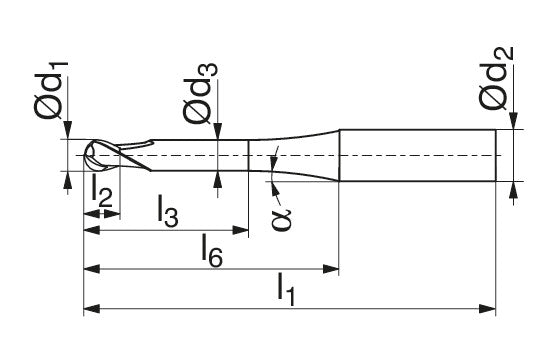

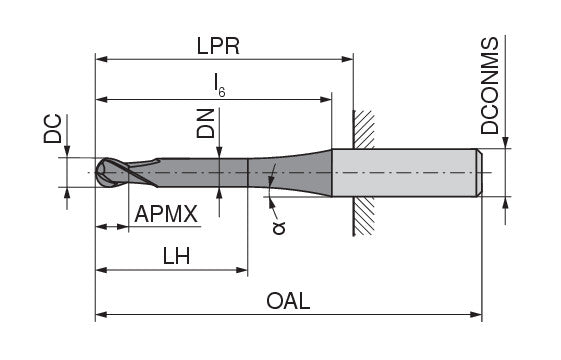

Cutting diameter DC/d1 f8 0.6299 inch 16 mm
Depth of cut maximum APMX/l2 1.1811 inch 30 mm
Neck Diameter DN/d3 0.622 inch 15.8 mm
Head length LH/l3 1.9685 inch 50 mm
Protruding length LPR/l5 4.0157 inch 102 mm
Overall length OAL/l1 5.9055 inch 150 mm
Mounting spigot diameter DCONMS/d2 h6 0.6299 inch 16 mm

Application & Properties:

Suitable Materials:

Property imageProperty image
,
