Ceratizit H.TO.2.0.30°.Z2.R0.5.HA.ML4.0 TI2000 BlueLine - Micro-torus Cutter 5236232005 (0649763)


Price:
Sale price$66.22
Stock:
Sold out

Description

Ceratizit Article Number: 5236232005

Ceratizit Material Number: 5236232005

Product discontinued! Unavailable if out of stock.

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product was priced singly and came in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit H.TO.2.0.30°.Z2.R0.5.HA.ML4.0 TI2000 BlueLine - Micro-torus Cutter 5236232005
EDP # 0649763
Weight (1 pc.) 0.5 oz 13.4 g

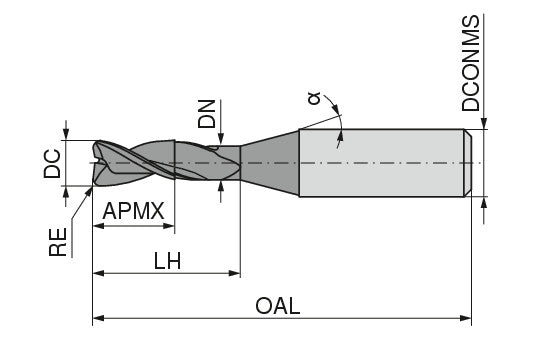

Cutting diameter / DC -0,008 0.0787" 2.000 mm
Corner radius / RE ±0,005 0.0197" 0.500 mm
Depth of cut maximum / APMX 0.0787" 2.000 mm
Neck Diameter / DN 0.0752" 1.910 mm
Head length / LH 0.1575" 4.000 mm
Protruding length / LPR 0.8661" 22.000 mm
Overall length / OAL 1.9685" 50.000 mm
Alpha 16
Mounting spigot diameter / DCONMS h5 0.1575" 4.000 mm
Peripheral effective cutting edge count / ZEFP 2
Coating name / Grade (Ceratizit) / COATN Ti2000

Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
