CERATIZIT WNXI.19,00.R.5D.IK.~DIN338/1835E HSSE TWIST DRILL 1018019000 (0652354)

Sale price$248.08
Not in stock - Available to order


WNXI.19,00.R.5D.IK.~DIN338/1835E HSSE TWIST DRILL Relief ground Special point thinning Wide chip flutes Rounded flute edges For long chipping materials up to 1000N/mm 2

Mat No: 1018019000, Article No: 10180190

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name CERATIZIT WNXI.19,00.R.5D.IK.~DIN338/1835E HSSE TWIST DRILL 1018019000 (0652354)
EDP # 0652354
Workpiece Material(s) All Materials (White)
Weight 8.7 oz 247.6 g

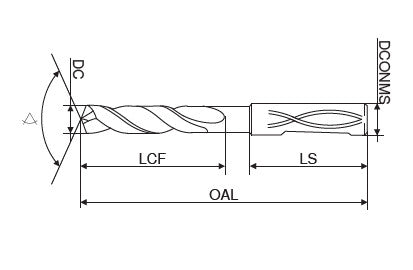

Cutting diameter DC/d1 h8 0.748 inch 19 mm
Overall length OAL/l1 6.0236 inch 153 mm
Length chip flute LCF/l2 3.9764 inch 101 mm
Mounting spigot diameter DCONMS/d2 h6 0.7874 inch 20 mm
Shank length LS/l4 2.0472 inch 52 mm
Usable length LU/l3 3.7402 inch 95 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty image
