Description
Ceratizit Article Number: 22518120
Ceratizit Material Number: 2251812000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

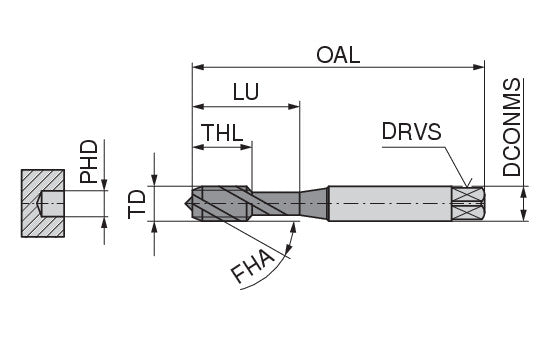

| Properties | ||
|---|---|---|
| Name | Ceratizit CavTap UNI.M12.ISO2-6H.DIN371-C VAP Blind Hole Machine taps, Right Hand 22518120 | |
| EDP # | 0655957 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 3.0 oz | 83.0 g |
| Thread diameter range / TD | 0.4724" | 12.000 mm |
| Thread pitch / TP | 0.0689" | 1.750 mm |
| Overall length / OAL | 4.3307" | 110.000 mm |
| Mounting spigot diameter / DCONMS | 0.4724" | 12.000 mm |
| Drive size / DRVS | 0.3543" | 9.000 mm |
| Premachined hole diameter / PHD | 0.4016" | 10.200 mm |
| Thread cutting part length / THL | 0.7087" | 18.000 mm |
| Usable length / LU | 1.7323" | 44.000 mm |
| Flutes | 3 | |
| Thread tolerance class / TCTR | ISO 2 6H | |
| Coating name / Grade (Ceratizit) / COATN | vap. | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
