WPC-UNI.14,00.R.5D.IK.DIN6535.HB TIALN SOLID CARBIDE TWIST DRILL
Mat No: 1161014000, Article No: 11610140
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
|Name||CERATIZIT WPC-UNI.14,00.R.5D.IK.DIN6535.HB TIALN SOLID CARBIDE TWIST DRILL 1161014000 (0662367)|
|Workpiece Material(s)||All Materials (White)|
|Weight||6.7 oz||190.6 g|

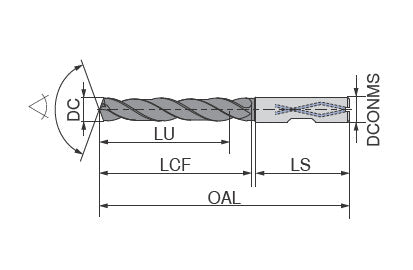

|Cutting diameter DC/d1 m7||0.5512 inch||14 mm|
|Overall length OAL/l1||4.8819 inch||124 mm|
|Length chip flute LCF/l2||3.0315 inch||77 mm|
|Mounting spigot diameter DCONMS/d2 h6||0.5512 inch||14 mm|
|Shank length LS/l4||1.7717 inch||45 mm|
|Usable length LU/l3||2.3622 inch||60 mm|
Application & Properties:
