Description
WTX-UNI.15,00.R.3D.IK.HE DPX74S SOLID CARBIDE TWIST DRILL
Mat No: 1177915000, Article No: 1177915000
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT WTX-UNI.15,00.R.3D.IK.HE DPX74S SOLID CARBIDE TWIST DRILL 1177915000 (0665421) | |
| EDP # | 0665421 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 8.0 oz | 227.3 g |

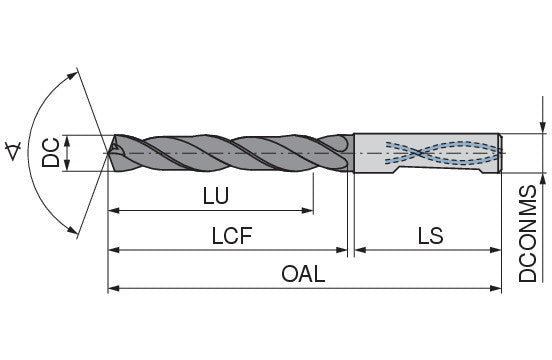

| Cutting diameter DC/d1 m7 | 0.5906 inch | 15 mm |
| Overall length OAL/l1 | 4.5276 inch | 115 mm |
| Length chip flute LCF/l2 | 2.5591 inch | 65 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.6299 inch | 16 mm |
| Shank length LS/l4 | 1.8898 inch | 48 mm |
| Usable length LU/l3 | 1.7717 inch | 45 mm |
Application & Properties:
Suitable Materials:
