Description
Mapal Order Number: 31045048
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

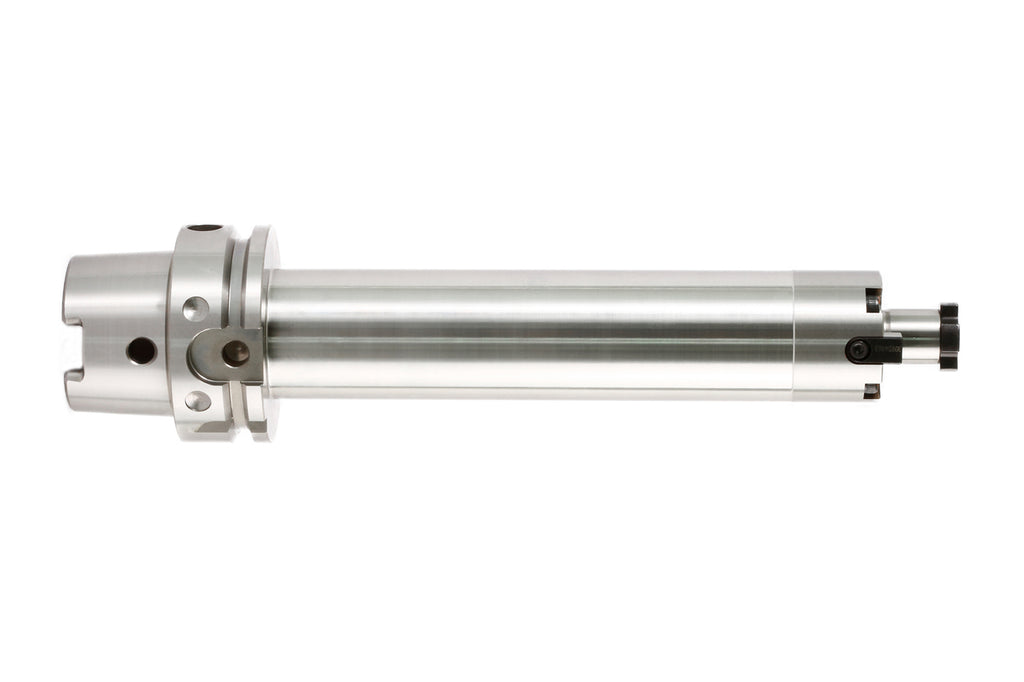

| Name | Mapal MDA-HSK-A063-22-200-1-0-W Milling Cutter Arbor 31045048 | |
| EDP # | 0669570 | |
| Shank Tolerance | H7 | |
| Machine Connection | HSK-A | |
| Size Machine Connection | 63 | |
| Technology | Milling Cutter arbor; Vibration Dampened | |
| d1 | 0.8661" | 22.000 mm |
| d2 | 1.8898" | 48.000 mm |
| d3 | 0.0000" | 0.000 mm |
| d4 | 0.0000" | 0.000 mm |
| d5 | 0.0000" | 0.000 mm |
| l1 | 7.8740" | 200.000 mm |
| l2 | 0.7480" | 19.000 mm |
| l3 | 0.0000" | 0.000 mm |
| l4 | 0.0000" | 0.000 mm |
| l5 | 0.0000" | 0.000 mm |
| Coolant Supply | Internal | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Without Length Adjustment | |
| Material Group | ||
Product Features:
- With the vibration-damped cutter mandrel, milling applications can be implemented with unprecedented performance, even with long cantilever lengths. The spring-loaded heavy metal core reduces vibrations and enables higher machining volumes while at the same time significantly improving surface qualities.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
