Description
Mapal Order Number: 30392311
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

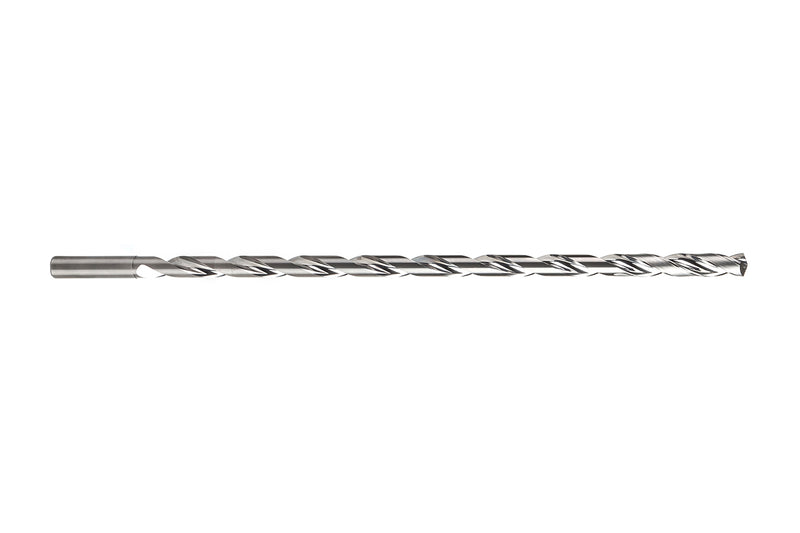

| Name | Mapal SCD181-0300-2-4-135HA25-HU680 MEGA-Deep-Drill-Alu 30392311 | |
| EDP # | 0673313 | |
| Product Class | Performance-Line | |
| Drilling Depth | 25 | |
| Drilling Depth Value | 2.9528" | 75.000 mm |
| d1 | 0.1181" | 3.000 mm |
| d2 | 0.1575" | 4.000 mm |
| l1 | 4.9213" | 125.000 mm |
| l2 | 3.5827" | 91.000 mm |
| l4 | 1.2598" | 32.000 mm |
| Cooling | Internal Cooling | |
| Number Of Cutting Edges (z) | 2 | |
| Shank Tolerance | h6 | |
| Bore Tolerance | ≥ IT 9 | |
| Shank Type | HA | |
| Tip Angle | 135° | |
| Side Rake Angle | 30° | |
| Material Group | ||
Product Features:
- The double-edged deep drilling tool, MEGA-Deep-Drill-Alu, is excellently suited for deep drilling applications in aluminium. Thanks to its four guiding edges, the drill bit deviation is minimized, resulting in significantly improved drilling results. Furthermore, the special TiAlN coating ensures short chips and guarantees a reliable drilling process.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
