Description
Mapal Order Number: 31037481
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.

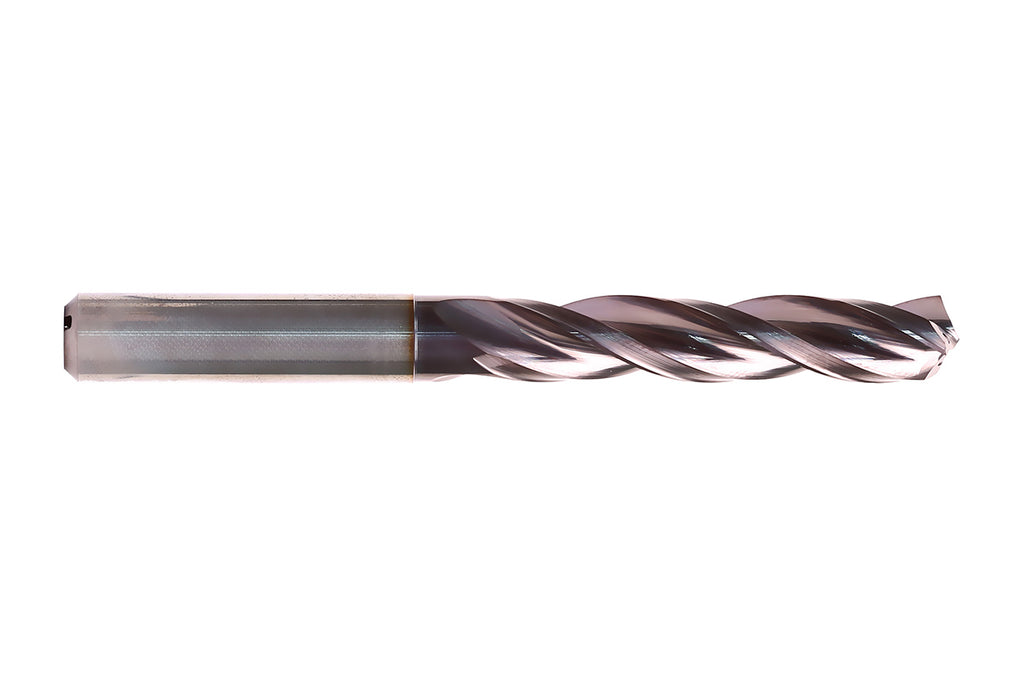

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Mapal SCD631-1350-3-3-135HA08-HP358 Tritan-Drill-Uni-Plus 31037481 | |
| EDP # | 0673532 | |
| Drilling Depth | 8xD | |
| d1 | 0.5315" | 13.500 mm |
| Drilling Depth Value | 4.2520" | 108.000 mm |
| d2 | 0.5512" | 14.000 mm |
| l1 | 7.0079" | 178.000 mm |
| l2 | 5.2362" | 133.000 mm |
| l3 | 4.4094" | 112.000 mm |
| l4 | 1.7717" | 45.000 mm |
| Cooling | Internal Cooling | |
| Number Of Cutting Edges (z) | 3 | |
| Shank Tolerance | h6 | |
| Bore Tolerance | ≥ IT 9 | |
| Shank Type | HA | |
| Tip Angle | 135° | |
| Side Rake Angle | 30° | |
| Material Group | ||
Product Features:
- MAPAL has developed the Tritan-Drill-Uni-Plus specifically for high-speed machining of steel, stainless steel, cast iron, and aluminum. This three-edged solid carbide drill features an optimized groove profile. Thanks to its innovative coating and finely ground chip flutes, the Tritan-Drill-Uni-Plus offers higher wear resistance and ensures optimal chip removal with short chips even at the highest feed rates.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
